Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

Cycling Track timing system - UCI Approved

Article: STCT

Manufacturer: Swiss Timing (Switzerland)

Category: Scoring and Timing Systems

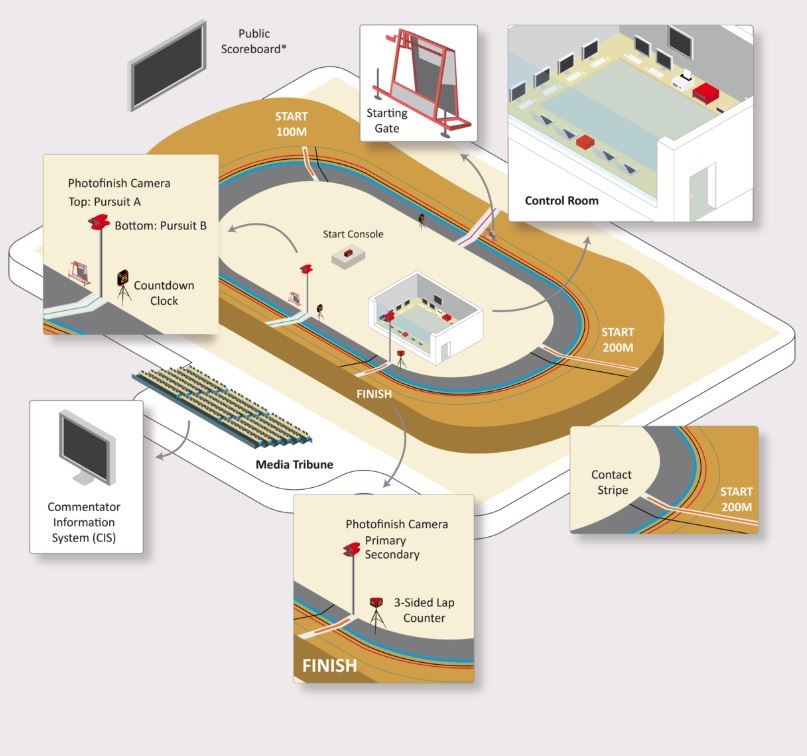

Specifications: The system include rack with timers, transponder system, photofinish cameras Myria, Starting semaphors and gates, Scoreboard of running time or video LED Display and etc.

Settings and integration of this system are highly dependent on the configuration of a sports facility.

Sertifcates : UCI compliance

General Description:

The Swiss company "Swiss Timing" offers scoring and timing systems for the sports industry. The single features and complete sets strongly depend on the configuration of the sports arena in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.

Add to your inquiry to the project manager

Another sports equipment from category

OMEGA PowerTime II Hand-held timer/printer OMEGA PowerTime II Hand-held timer/printer

Article: 3462.900
Dimensions: 210 x 95 x 40 mm
Weight: 410 g (no paper, no batteries)
Display: Alphanumeric LCD, 4 lines of 16 char. each
Timebase type: Thermo—compensated quartz oscillator
Timebase resolution: 1/1000 sec to 1 sec (programmable)
Chronograph: 23.59.59.999 repetitive
Keyboard: 10 numeric keys and 8 function keys
Acoustic signal: 1 KHz
Memory capacity: Maximum 2000 competitors
Printer: 24 alphanumeric characters per line
Print speed: 1,5 s per line
Paper: Thermal, width 58 mm, length 8 m
Printing capacity: 2000 lines per roll
Serial link: RS232 (data); RS485 (display)
External power supply: 9—15 VDC
Internal power supply: 4 alkaline batteries 1.5 V, 1500 mAh, type AA/LR6/UM3
Operating time without serial output: > 30 hours and 2000 printed lines at + 20°C
Operating time with running time on PC and scoreboard: > 12 hours and 2000 printed lines at +20°C
External power: Power jack plug Ø3.5 / 1.9 mm for 9 V power adaptor
Operating temperature: — 10 °C to +50°C
Storage temperature: — 30 °C to +60°C
Printer temp. Range: — 10 °C to +50°C
Protection: IP40
Mains power: 115—230 VAC, 50—60 Hz depending on model
Output voltage: 9V DC 1.2A
Manufacturer Swiss Timing (Switzerland)

Starting gate cycling Starting gate cycling

Article: 3358.900
Dimensions: 1110 x 800 x 1000 mm (LxWxH)
Weight: 60.2 kg
Service pressure: 4.5 to 6.0 bars
Supply pressure: 200 bars
Working temperature: 0°to +50°C
Storage temperature: —10° to +35°C
Protection: IP51

Button judge-timekeeper OIT5 Button judge-timekeeper OIT5

Article: 3498.701
Manufacturer: Swiss Timing (Switzerland)
Model: OIT5
Category: part of refereeing and timing systems
Specifications:
— In the free position is open button;
— Connectors such as "banana"
— waterproof and handy with spiral cable 1,25м
— Protection IP67
Certifcates: FINA demand compliance
