Video distance measurement system for ski jumping
Camera specifications:
- HD video output allowing: 1920x1080i or 1280x720p
- 15 – 25m field of view per camera
- Optical 10x zoom (F1.8 – F2.1)
- Max. 1/10.000s shutter speed
- Automatic or remote controls: Manual iris: F1.8 – F26; Manual gain control: -3dB – +18dB
- Infrared mode
Manufacturer Swiss Timing (Switzerland)
Video Distance Measurement System (VDMS) provides an easy to use digital solution for measuring the distance of a ski jump.

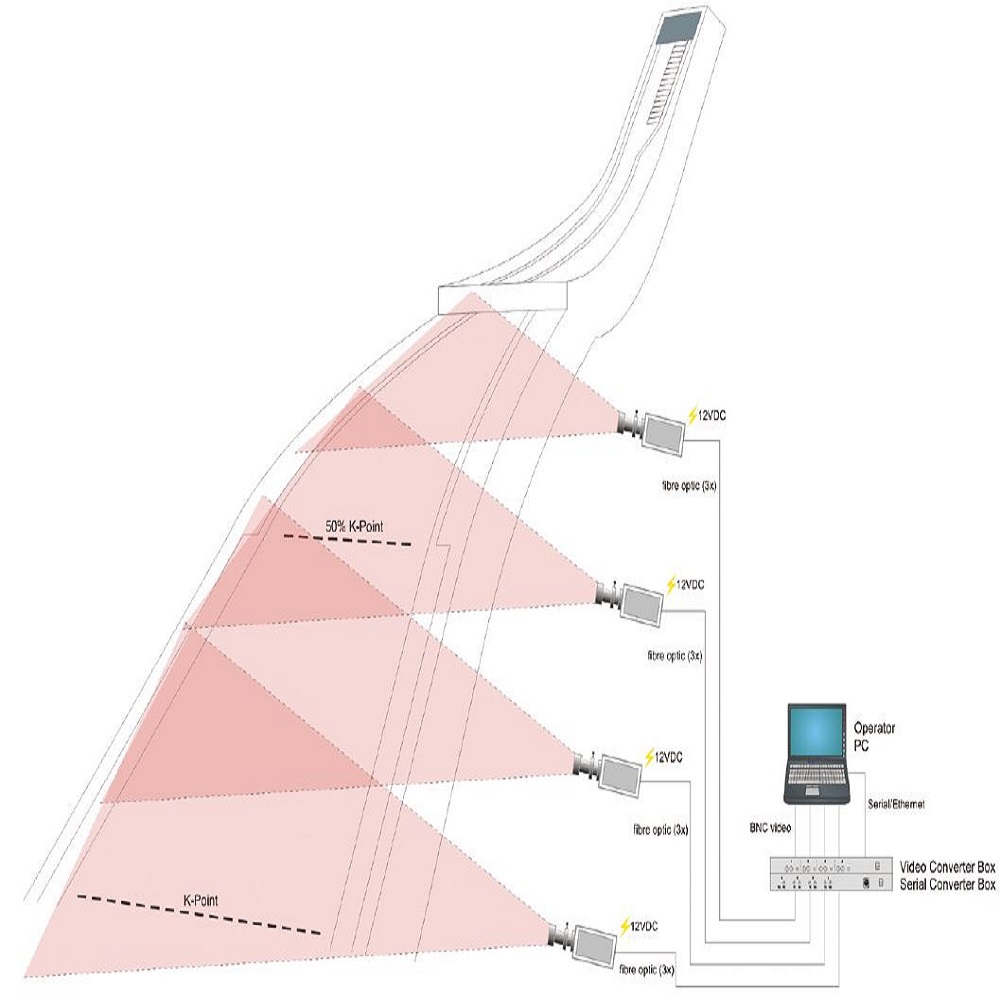

The key component of the system is an array of four highdefinition video cameras, assembled in a line beside the jumping hill and covering the entire landing zone. These cameras provide a visually clean video recording of the actual landing phase, regardless of any differences in the jumping distance.
Features:
- Digital solution for video-based distance measurement
- Integrated HD video capturing system
- Fiber optic video transmission
- Synchronous capture of four video streams
- Uncompressed video processing for highest quality
- Remote controllable camera
- Easy to handle software component
- Additional backup- and archiving features
- In accordance with FIS regulations
