Precision time electronic whistle Systems PTS900

Article: AVSR1081

Weight: 2.8 kg. (set in a case)

Connection via power adapter: 100-240V 50 / 60Hz

Connections: USB / DIN interface data exchange with Stramatel control panel, software update.

Normal operating conditions:

- range of operating temperatures from 0 to plus 35 ° C

- relative air humidity up to 80% at plus 25 ° С

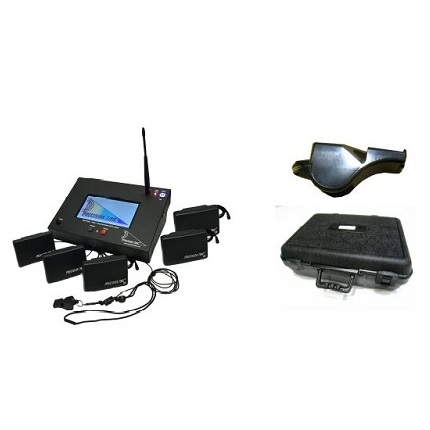

Composition:

1 Carrying case with all contents

1 PTS 900 Base Station with touchscreen

5 Belt Packs, with clips and screws.

1 Power supply and power cable

1 Null Modem adapter (1/2" M<>F adapter with Orange strip) (only if you have a Daktronics

scoreboard)

1 Clock cable (for Daktronics, OES, Whiteway or Electro-Mech, Nevco)

4 Fox40 Classic whistles with lanyards

1 combination Phillips / flat screwdriver.

Interactive Touchscreen: The Brain of the PTS-900 system is an Android-based operating system. The
interactive Touchscreen allows for easy access to diagnostic information regarding belt pack
connectivity, battery strength status, as well as Game Clock data. Software upgrades can be
implemented simply through an internet connection. This will allow for timely software updates and
installation of new software features as needed.

Enhanced Whistle Recognition: The PTS-900 system now uses a new patented
calibration of the referee’s whistle taken before each game to generate a reference
point for stopping the clock during play. This significantly enhances the performance of
the system in stopping the clock by personalizing each belt pack to the way each
individual referee sounds his/her whistle. It has been extensively tested and proven
reliable with the Fox 40 Classic Whistle.

Data Collection/Time Stamping: Our patented event tracking technology allows the
PTS-900 to record each clock event (starts/stops) and store the data on an internal SD
card. With the ever increasing scrutiny placed on accurate game clock operation these
data files are becoming an essential part of post game reports requested by
conference offices. The standard data file includes the referee (identified by belt pack
#) that initiates the event, the game clock time, period of play, shot clock time, and the
delta time, which is the real time between each action. Files are stored and retrievable
in a report form for review and analysis. The game time in the file can be generated
either from an internal clock that can be set/adjusted through the user interface, or by
utilizing data output from the STRAMATEL scoreboard controller; for which the
latter will provide the most accurate time as well as the shot clock time for each event.

Multiple channel selection: the PTS-900 can be set to any one of over 250 channels on
the RF spectrum, which allows flexibility when deploying the system in environments
that may have other RF interference from diverse sources such as security,
foodservice, media, and other concerns. This channel flexibility also allows the
Precision Time System to be implemented easily in multiple countries with different
regulations regarding open channels in the spectrum.

Connectivity : the PTS-900 will have the capability for wireless internet connectivity,
which will allow for easy access to software updates as well as for data retrieval and
monitoring as needed. The PTS-900 also has 2 USB ports for downloading game files
for review. The PTS-900 is a collection of the latest technologies brought together to
form a timing system that is clearly the gold standard in the sport of basketball. In
addition there is tremendous potential for Precision Time to be effective in enhancing
the game clock operation in many other sports including:
Men’s Lacrosse
Wrestling
Water Polo
Football (Using our manual stop belt pack)
HS and College Soccer (Using our manual stop belt pack)
