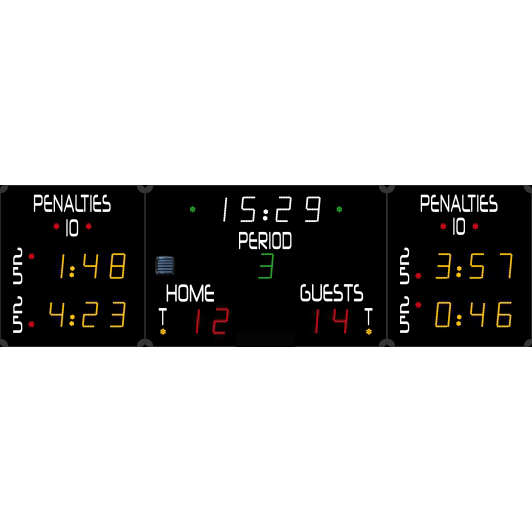

Ice hockey scoreboard 452 GS 9020
Article: AVSR1050
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 3300 x 1000 x 90mm
Weight: 59 kg
Power supply: 230V / 50-60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
DISPLAY FUNCTIONS:
Score: 2 x 2 red LED digits (15 cm)
Period: 1 green LED digit (15 cm)
Time stop indicator: 2 x 1 green LED dot
Timer/Rest period: 4 white LED digits (15 cm) + blinking points
Time out indicator: 2 x 1 yellow LED dot
Exclusions timers: 2 x 3 yellow LED digits (15cm) (for each module)
Display of 2 penalties per team
Penalty indicators: 6 red LED dots for 2’, 5’ and misconduct (10’) penalties
(for each module)
Supported sports: ice hockey
Made in EU.
Another sports equipment from category
Multisport PRO Outdoor scoreboard 452 XMB 7000
Article:AVSR1027
Dimensions: 1900 x 1150 x 90 mm
Weight: 35 Kg
Digit height: 25 and 20 cm
Distance of readability: 110 m
Angle of readability: 160°
Display: LEDs (SMD) red
Horn (116dB at 1m)
Team names: HOME/GUESTS
FIBA approved
Multisport scoreboard 452 MS 7120-2
Article:AVSR1010
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1300 x 90mm
Weight: 53kg
Power supply: 230V / 50—60Hz
Power consumed: 113VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
Ice hockey scoreboard 452 GB 9020-2
Article:AVSR1053
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 4900 x 1150 x 90mm
Weight: 90 kg
Power supply: 230V / 50—60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
