Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

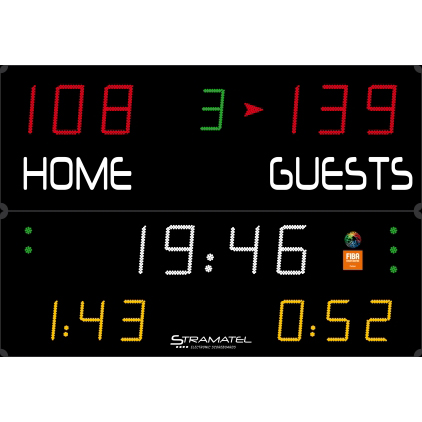

Multisport scoreboard 452 MF 7000

Article: AVSS1001


Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 167 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (30 cm)
Period: 1 green LED digit (25 cm)
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (30 cm) + blinking points
Team fouls (BB) or sets (VB, T, TT...) / Penalty timer (HB): 2x3 yellow LED digits (25 cm)
Time out (BB, HB, VB) / No. of exclusions (HB): 2 x 3 green LED points

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MF 7120 Multisport scoreboard 452 MF 7120

Article:AVSS1004
Dimensions: 4304 x 1800 x 90 mm
Weight : 120 Kg
Digit height : 25 and 30 cm
Distance of readability : 160 m
Angle of readability : 160°
Display : LEDs (SMD)
FIBA approved for competitions level 1

Multisport scoreboard 452 MF 3123 Multisport scoreboard 452 MF 3123

Article:AVSS1008
Dimensions: 4304 x 2200 x 90 mm
Weight : 145 Kg
Digit height : 25 and 30 cm
Distance of readability : 160 m
Angle of readability : 160°
Display : LEDs (SMD)
FIBA approved for competitions level 1

Multisport scoreboard 452 MF 7100 Multisport scoreboard 452 MF 7100

Article:AVSS1002
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 229 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1
