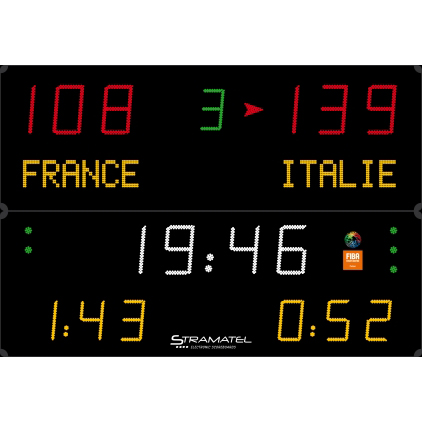

Multisport scoreboard 452 MF 7100

Multisport scoreboard 452 MF 7100 AVSR1002

Article: AVSR1002

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 160m, angle >160°

Dimensions: 2600 x 1800 x 90mm

Weight: 75 kg

Power supply: 230V / 50-60Hz

Power consumed: 229 VA

Protection: Unbreakable matt polycarbonate front face (DIN 18032-3)

Horn: 2 integrated horns, total = 119dB at 1m

Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²

FIBA approved for competitions level 1



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (30 cm)
Period: 1 green LED digit (25 cm)
Team names: 20 yellow LED alphanumerical characters (16 cm)
Moving messages (Ads/Sponsor): 1000 characters
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (30 cm) + blinking points
Team fouls (BB) or sets (VB, T, TT...) / Penalty timer (HB): 2x3 yellow LED digits (25 cm)
Time out (BB, HB, VB) / No. of exclusions (HB): 2 x 3 green LED points

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MF 3023 Multisport scoreboard 452 MF 3023

Article: AVSR1007
Dimensions: 4304 x 1800 x 90 mm
Weight : 146 Kg
Digit height : 25 and 30 cm
Distance of readability : 160 m
Angle of readability : 160°
Display: LEDs (SMD)

Multisport scoreboard 452 MF 7100 Multisport scoreboard 452 MF 7100

Article:AVSR1002
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 229 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1

Multisport scoreboard 452 MF 7000 Multisport scoreboard 452 MF 7000

Article:AVSR1001
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 167 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1
