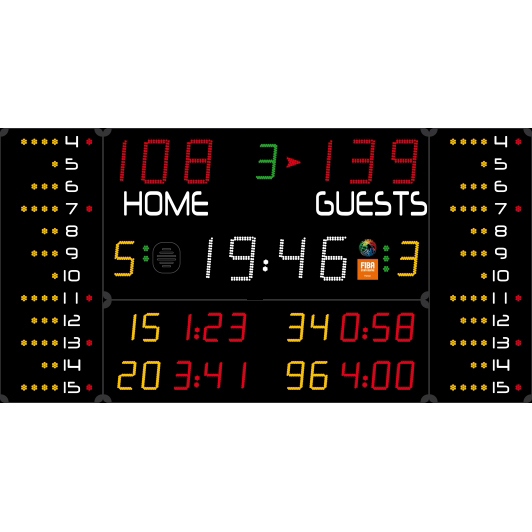

Multisport scoreboard 452 MB 3023

Article: AVSS1017


Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3100 x 1600 x 90mm
Weight: 80 kg
Power supply: 230V / 50—60Hz
Power consumed: 209 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Horn: 1x integrated horn, 116dB at 1m
Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (25 cm)
Period: 1 green LED digit (20 cm)
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Team fouls (BB)/sets (VB, T, TT...): 2 yellow LED digits (20 cm)
Time out (BB, HB, VB) / No. of exclusions (HB): 2 x 3 green LED points
Excluded player (HB) / last penalized player (BB) / set result for home team (VB, T, TT...): 4 x 2 yellow LED digits (16 cm)
Penalty timer (HB)/Time-out timer (BB) / No. of individual fouls for last penalized player(BB)/ set result for guest team (VB, T, TT...): 4 x 3 red LED digits (16 cm) + blinking points
Individual fouls (BB) 2 modules: 5 yellow LED points + 1 red LED point per player (12)

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MS 7020 Multisport scoreboard 452 MS 7020

Article:AVSS1035
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1000 x 90mm
Weight: 44 kg
Power supply: 230V / 50—60Hz
Power consumed: 113VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ

Multisport scoreboard 452 MS 7000 Multisport scoreboard 452 MS 7000

Article:AVSS1029
Use : Indoor
Transmission : Radio (868 MHz) or cable
Readability : 60m, angle >160°
Dimensions : 1500 x 1000 x 90mm
Weight : 24 kg
Power supply : 230V / 50—60Hz
Power consumed: 74 VA
Protection : Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn : 116dB at 1m
Mains cable (supplied) : 25 m – Typ: 230V, 3G, 0.75 mm

Multisport scoreboard 452 MS 3120 Multisport scoreboard 452 MS 3120

Article:AVSS1034
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1000 x 90mm
Weight: 44 kg
Power supply: 230V / 50—60Hz
Power consumed: 153 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Horn: 1x integrated horn, 116dB at 1m
Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm
