Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

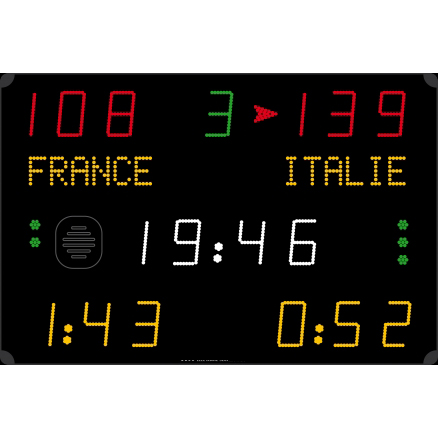

Multisport scoreboard 452 MS 7100

Article: AVSR1030

Use : Indoor

Transmission : Radio (868 MHz) or cable

Readability : 60m, angle >160°

Dimensions : 1500 x 1000 x 90mm

Weight : 24 kg

Power supply : 230V / 50-60Hz

Power consumed: 114 VA

Protection : Unbreakable mat polycarbonate front face (DIN 18032-3)

Integrated Horn : 116dB at 1m

Mains cable (supplied) : 25 m – Typ: 230V, 3G, 0.75 mmІ



DISPLAY FUNCTIONS:
Score : 2 x 3 red LED digits (15 cm)
Period : 1 green LED digit (15 cm)
Team names: 20 yellow LED alphanumerical characters (9 cm)
Ball possession: 2 red LED arrows
Timer/Rest period : 4 white LED digits (15 cm) + blinking points
Team fouls (BB)/ Exclusion timer : 2 x 1 yellow LED digits (15 cm)
Time out (BB, HB, VB) or number of exclusions (HB) : 2 x 3 green points

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MF 7000 Multisport scoreboard 452 MF 7000

Article:AVSR1001
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 167 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1

Multisport scoreboard 452 MB 3023-2 Multisport scoreboard 452 MB 3023-2

Article: AVSR1034
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3200 x 2000 x 90mm
Weight: 103 kg
Power supply: 230V / 50—60Hz
Power consumed: 209 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Horn: 1x integrated horn, 116dB at 1m
Team names: HOME/GUESTS White stickers
Player number: 2 yellow LED digits (6 cm) per player (12)
3 lines of penalty time
FIBA approved

Multisport scoreboard 452 MB 3023 Multisport scoreboard 452 MB 3023

Article:AVSR1017
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3100 x 1600 x 90mm
Weight: 80 kg
Power supply: 230V / 50—60Hz
Power consumed: 209 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Horn: 1x integrated horn, 116dB at 1m
Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.
