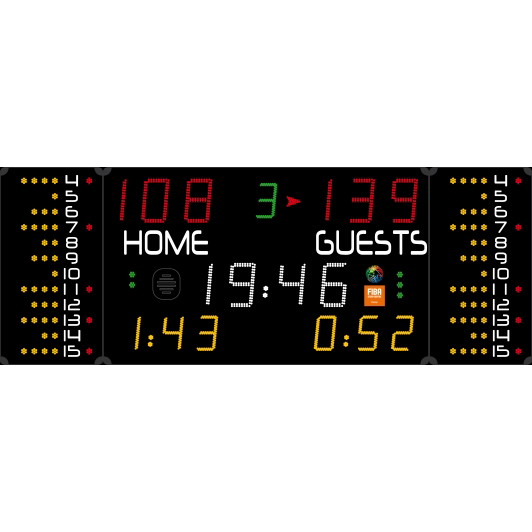

Multisport scoreboard 452 MB 7020

Article: AVSR1013

Use : Indoor

Transmission : Radio (868 MHz) or cable

Readability : 110m, angle >160°

Dimensions : 3100 x 1150 x 90mm

Weight : 57 kg

Power supply : 230V / 50-60Hz

Power consumed: 135 VA

Protection : Unbreakable matte polycarbonate front face (DIN 18032-3)

Integrated Horn : 116dB at 1m

Mains cable (supplied) : 25 m – Type: 230V, 3G, 0.75 mm²

FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score : 2 x 3 red LED digits (25 cm)
Period : 1 green LED digit (20 cm)
Ball possession: 2 red LED arrows
Timer/Rest period : 4 white LED digits (25 cm) + blinking points
Team fouls (BB)/ Exclusion timer : 2 x 3 yellow LED digits (20 cm)
Time out (BB, HB, VB) / number of exclusions (HB) : 2 x 3 green points
Individual fouls (BB) 5 yellow points + 1 red points for each player (12)

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MB 3123-12 Multisport scoreboard 452 MB 3123-12

Article: AVSR1044
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3600 x 2000 x 90mm
Weight: 116 kg
Power supply: 230V / 50—60Hz
Power consumed: 300 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 1x internal horn, 116dB at 1m
Programmable team names or moving messages display for 1000 characters
Player number: 2 yellow LED digits (9 cm) per player (12)
Player points — 2 red LED digits (9 cm) per player
3 lines of penalty time
FIBA approved

Multisport scoreboard 452 MF 3023 Multisport scoreboard 452 MF 3023

Article: AVSR1007
Dimensions: 4304 x 1800 x 90 mm
Weight : 146 Kg
Digit height : 25 and 30 cm
Distance of readability : 160 m
Angle of readability : 160°
Display: LEDs (SMD)

Multisport scoreboard 452 MB 7000 Multisport scoreboard 452 MB 7000

Article:AVSR1011
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 1900 x 1150 x 90mm
Weight : 35 kg
Power supply : 230V / 50—60Hz
Power consumed: 98 VA
Protection : Unbreakable matte polycarbonate front face (DIN 18032—3)
Integrated Horn : 116dB at 1m
Mains cable (supplied) : 25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.
