Aligner View System - certified by FISA / ICF

Article: AVPR1004

Made in: EU

The Aligner View System is a multi-camera system, which is a useful aid for the judges to execute the starts during the canoe-kayak and rowing races.

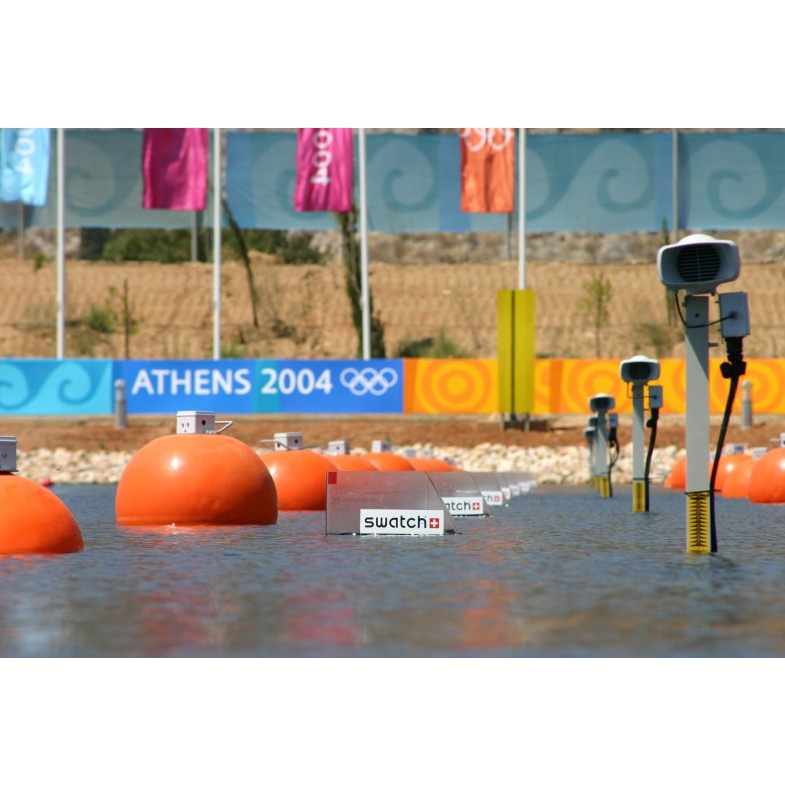

Robust, weatherproof cameras are mounted on each post of the Automatic Starting System close to the start gates. The live video streams are transferred to the connected computer sitting in the control tower, where judges can view the close-up videos of each gate simultaneously. Such system, in harmony with the transparent start gates, allows the judges to confirm each boat’s position on or around the start line.

In a rowing start there are two phases when the Aligner View System may help the judges:

1. Before raising the gates. The aligner judge observes whether the area above the gates is empty and warns the athlete(s) if correction is needed. Once the area is clear, the aligner judge informs the control tower.

2. After raising the gates to the water surface. The aligner judge checks the tips of the boats entering into the start gates and instructs the athletes to paddle into the correct position, if needed.

For canoe-kayak races only the second phase may apply..

[Technicals Features:]

  • Easy and accurate check of alignment
  • Robust and waterproof cameras
  • Simultaneous close-up video of each transparent start gate
  • Certified by  FISA / ICF

Add to your inquiry to the project manager

Another sports equipment from category

Automatic Start System for canoe-kayak - certified by ICF Automatic Start System for canoe-kayak - certified by ICF

Article:AVPR1002
Made in: EU
Starting System is constructed from high quality, heavy—duty components, which make it resistant against stormy wind and extreme waves.
The System can be assembled quickly and can be transported on a trailer.
Operation parameters:
— Gate alignment accuracy on the Start line: within 5 mm
— Gate movement speed: 2,8 m / sec
— Gate submerging time: 0,1 sec
— Gate return to start position time: 5 sec
— Gate return position accuracy: 0,5 mm
— Maximum start frequnecy: 10 starts / minute
