False start detection system kit for Athletics
Article: 3508.900
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing systems
Specifications:

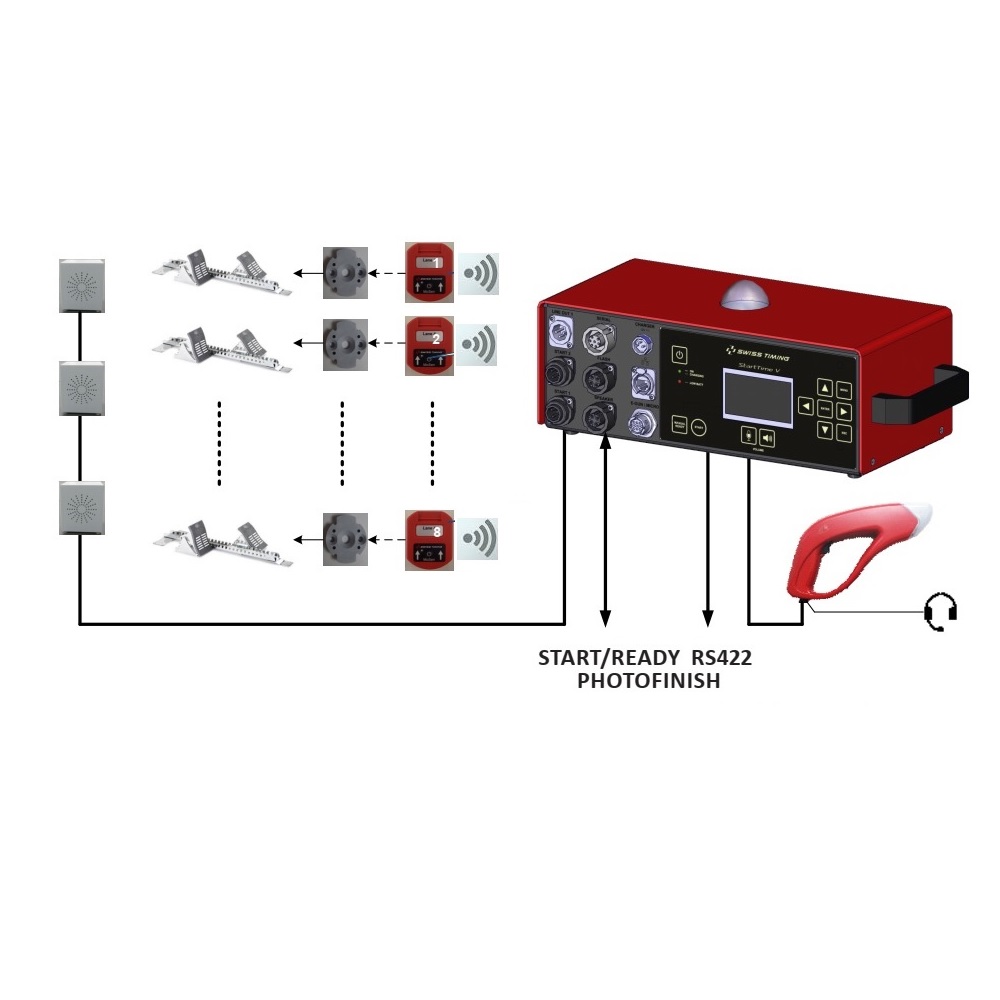

- For running disciplines used: false start detection system Mostrac with E-Gun, StartTime V, Starter headset with microphone, Three loudspeaker (with 10 m of cable for each), 8 MoSen in their charger case, 16 fixing clips to stick directly on starting Block, Power supply to recharge StartTime and MoSen
General Description:
The Swiss company "Swiss Timing" offers scoring and timing systems for the sports industry. The single features and complete sets for Track and field athletic scoring system strongly depend on the configuration of the sports area in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.
Another sports equipment from category
Telephone set with headset
Article: 3431.921
Autonomy about 100 hours
Microphone—headset dynamic microphones and headsets
Power supply 1 x 9V battery
Manufacturer Swiss Timing (Switzerland)
OMEGA SCAN'O'VISION MYRIA 10 Camera
Article: 3503.910
Acquisition speed: 500 to 2’000 lines per seconds or 500 to 10’000 lines per seconds
Resolution: 2048 pixels (at any speed)
Nbr. of color per pixel: >16 millions
Time base precision: ±0.1ppm (oven—controlled)
Transmission: Ethernet 1Gb/s (PoE PD), 9kB jumbo frame, IEEE 802.3at (25W), IEEE 1588 (Precision Time Protocol)
Max. distance between camera and computer: 100m (Cat5e Ethernet cable)
Working temperature: 0°C to +50°C
Storage temperature: —20°C to +70°C
Protection: IP55
Camera dimension: 415 x 270 x 143mm (LxWxH)
Camera weight: 3.6 kg
MISTRAL Integrated wind gauge
Article: 3436.900
Measurement duration: 5, 10 or 13 seconds, 1 to 30 seconds with RS422 serial remote control
Display: Amber LED, 250mm height
Display luminosity: 4 steps automatically adjusted with a light sensor
Display duration: 3 minutes after each measurement
Power: 115 / 230VAC 50/60 Hz, max. 0.5A
Internal battery autonomy: ~12 hours* at maximum luminosity, ~60 hours* at minimum luminosity
Wind speed range: —9.9m/s to +9.9m/s
Wind speed accuracy: ±0.1m/s
Operating temperature: 0 °C to +50 °C
Storage temperature: —25 °C to +70 °C
Moisture protection: IP54 (IP65 for the head)
Dimensions (closed): 850 x 760 x 200 mm
Dimensions (maximum open): 850 x 1390 x 415 mm
Weight with head: 21 kg
Manufacturer Swiss Timing (Switzerland)
