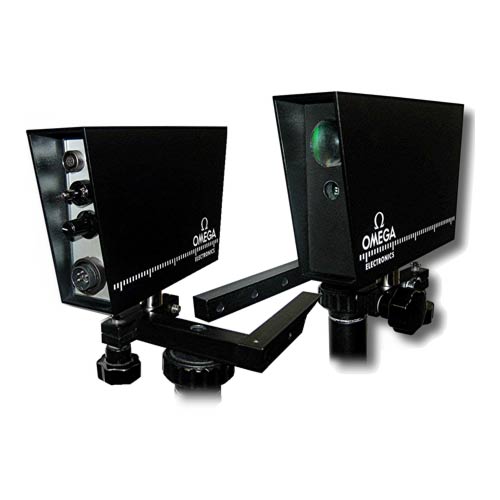

ARGES photocells

Article: 3459.930

Manufacturer: Swiss Timing (Switzerland)

Model: Arges photocells

Category: Part of refereeing and timing systems

Specifications: Used for cross country, athletic and other sports.
Battery type: 3xAA or UM—3
Typical battery life: ~ 4 h (transmitter), ~ 20 h (receiver)
Weight incl. batteries: 915 g
Dimensions: 188 x 57 x 95 mm
Fixing: UNC 1/4”
Protection: IP54
Working temperature: —30°C to 70°C
Storage temperature: —35°C to 85°C
Operating distance: max 200 m
Response time: < 1 ms
Power supply : integrated 12V/7Ah lead—acid battery
Battery autonomy : more than 1000 starts before recharge

General Description:

The Arges Photocell automatically detect any interruption and report accordingly to meet the international standards. The Arges allows simple constant monitoring of cell alignment by the LED indicator and an optical electronics system (viewmeter) which allow easy operations for use up to 200 metres between the transmitter and the receiver. The Arges has an internal battery; it can also be connected to an external battery or a DC power supply. The Swiss Timing photocell is the best guarantee to ensure optimal security of the results.

The Swiss company "Swiss Timing" offers scoring and timing systems for sports competitions. The single features and complete set for scoring depend strongly on the configuration sports arena in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.

Add to your inquiry to the project manager

Another sports equipment from category

Button judge-timekeeper OIT5 Button judge-timekeeper OIT5

Article: 3498.701
Manufacturer: Swiss Timing (Switzerland)
Model: OIT5
Category: part of refereeing and timing systems
Specifications:
— In the free position is open button;
— Connectors such as ""banana""
— waterproof and handy with spiral cable 1,25м
— Protection IP67

ARGES photocells ARGES photocells

Article: 3459.930
Manufacturer: Swiss Timing (Switzerland)
Model: Arges photocells
Category: Part of refereeing and timing systems
Specifications: Used for cross country, athletic and other sports.
Battery type: 3xAA or UM—3
Typical battery life: ~ 4 h (transmitter), ~ 20 h (receiver)
Weight incl. batteries: 915 g
Dimensions: 188 x 57 x 95 mm
Fixing: UNC 1/4”
Protection: IP54
Working temperature: —30°C to 70°C
Storage temperature: —35°C to 85°C
Operating distance: max 200 m
Response time: < 1 ms
Power supply : integrated 12V/7Ah lead—acid battery
Battery autonomy : more than 1000 starts before recharge

Acoustic start device StartTime V Acoustic start device StartTime V

Article: 3481.931
Manufacturer: Swiss Timing (Switzerland)
Model: StartTime V
Category: Part of refereeing and timing systems
Specifications: Used for short track, speed skating, cross country, athletic and other sports. Protection: IP64
Power supply : integrated 12V/7Ah lead—acid battery
Charger : included, Battery autonomy : more than 1000 starts before recharge
