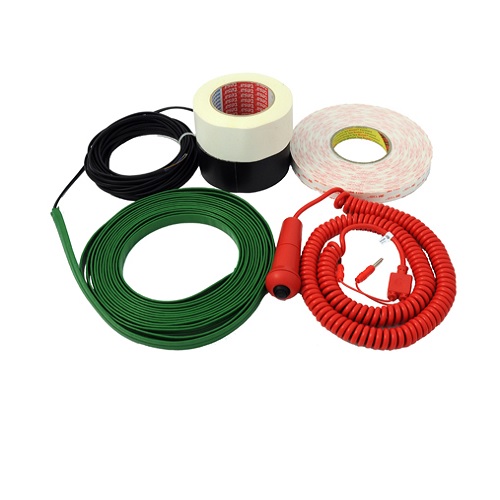

Set of contacts for track 250 m

Timing scoreboard Gemini

Article: 3449.961
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing systems
Specifications:The Gemini is a modular 9—or 6 digit or 12 alphanumerical characters scoreboard that uses LED technology and allows indoor as well as outdoor applications with IP54. The height of LED's 24cm. for digits and 20cm. for alphanumeric display
Housing dimensions/Weight:
type 9 digits: 2400x340x94 mm., / 15,3 kg.
type 6 digits: 1460x340x94 mm., / 10,2 kg.
type 12 alfanum: 2400x340x94 mm., / 15,7 kg.
Certifications:CE and RoHS

TRACKER - Start Semaphores / Lap counters

Article: 3442.901
Housing width: 640 mm (690 mm with handles)
Housing: 715 x 155 mm (H x D)
Digit height: 26 cm
Support height: adjustable 1040 to 1490 mm
Weight with support: 21.6 kg
Backup battery life: 4 hours
Power supply: 115—230 VAC, 50/60 Hz
Power consumption: 100 VA
Countdown sound: Beep (500 and 1000 Hz)
Countdown start: Bang or beep
Last Lap indication sound: Bell (synthesised)
Volume: Adjustable, up to 102 dB
Integrated keypad: 4 keys (clear, lap +, lap—, bell control)
Operating temperature: 0° to 50°C
Storage temperature: —10° to +50°C
Protection: IP 55
Manufacturer Swiss Timing (Switzerland)

Lap Counter

Article: 3442.911
Power supply: 115 — 230 VAC 50/60Hz
Power consumption: Max 0.6A
Data transmission: RS422, 9600 Bauds, 8 data bit, no parity, 1 stop bit
Dimension without tripod: 750 x 650 x 510 mm
Weight without tripod: 15.6kg
Height of digits: 260 mm
Viewing distance, up to: 130 m
Horizontal viewing angle: 110o
Display type: Amber LED (150 LEDs per digit)
Display luminosity: 15 steps adjusted manually or automatically with a light sensor.
Protection: IP54
Manufacturer Swiss Timing (Switzerland)
