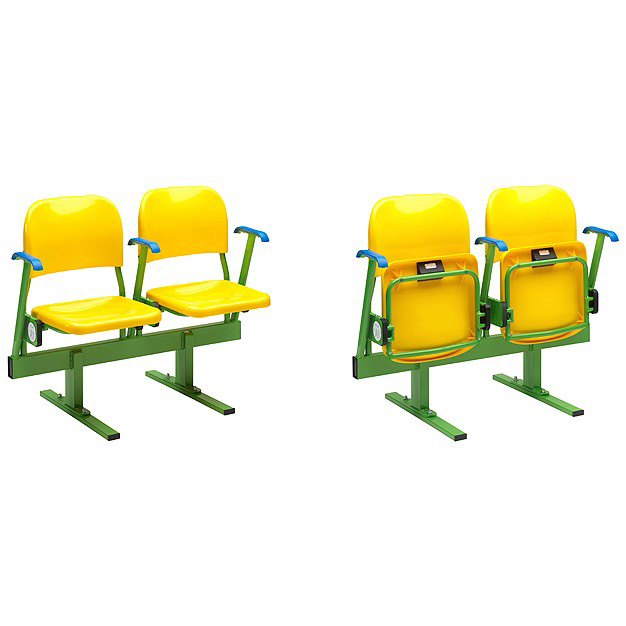

Stadium seats SR-S16M on metallic beam - UEFA recommended and FIBA approved

Article: stadium-seats-sr-s16m-su-trave-metallica-uefa-recommended-and-fiba-approved

Made in: EU

Model: SR-S16M on metallic beam

Category: Tribune, seats

Technicals Features:

Tip up seat, UEFA recommendations and FIBA approved. Made from polypropylene seat and back assembled on the metal tip up frame: strong, classical design, comfortable, versatile (2 available versions: riser mounted or clamped onto a metal beam).

OVERALL DIMENSIONS

Depth with folded seat 260 mm; depth with open seat 485 mm; width 460 mm.

MATERIAL

Polypropylene (PP) or polyamide (PA) seat and back; metal structure; injection moulded.

INSTALLATION

Directly on step riser, clamped onto a metal beam 2-3-4 seats, on single swivel pedestal.

FIXING

3 fixing points if installed on step riser; 2 fixing points when installed on metal beam.

DRAINAGE
Drainage by gravity with folded seat.

ACCESSORIES
Aluminium numbered label secured by means of anti-tear rivets, upholstery panels for seat and back; removable padded cover; metallic armrest with plastic pad eventually complete of glass holder
