Short Track Timing system - ISU Approved
Article: STST
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing Systems

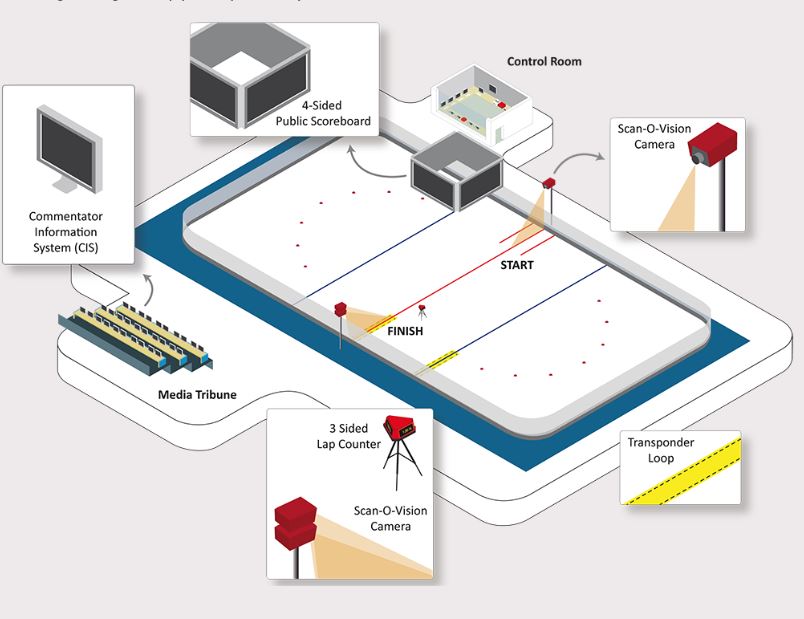

Specifications: Basic system elements:
Electronic start gun (E-gun) to indicate the start of the race and Start TimeV with mobile loudspeaker
Timer with a certifed clock is required to measure all race tmes
Lap counter
Photofinish camera Myria
PC with Partcipants and competition management software
HDV - finish videoreplay system
Transponder system
Gemeni scoreboard 9 digits rolling tme board
Certifications: ISU
General Description:
Timing system is required for real time timing and scoring, judging and data collecting, results processing to display and publish. Timing and Scoring systems are based on electronic and computer technologies that ensure that all information is real-time and accurate.
Short track is practiced on ice in a standard, 111.12m ice hockey rink. Two to eight competitors compete in one time and speed can reach up to 60 km/h. What makes this sport so spectacular is the challenge to maintain high speeds while skating on a track with tight turns.
The Swiss company "Swiss Timing" offers scoring and timing systems for the sports industry. The single features and complete sets strongly depend on the configuration of the sports arena in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.
Another sports equipment from category
Short Track Timing system - ISU Approved
Article:STST
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing Systems
Specifications: Basic system elements:
Electronic start gun (E—gun) to indicate the start of the race and Start TimeV with mobile loudspeaker
Timer with a certifed clock is required to measure all race tmes
Lap counter
Photofinish camera Myria
PC with Partcipants and competition management software
HDV — finish videoreplay system
Transponder system
Gemeni scoreboard 9 digits rolling tme board
Certifications: ISU
OMEGA SCAN'O'VISION MYRIA 10 Camera
Article: 3503.910
Acquisition speed: 500 to 2’000 lines per seconds or 500 to 10’000 lines per seconds
Resolution: 2048 pixels (at any speed)
Nbr. of color per pixel: >16 millions
Time base precision: ±0.1ppm (oven—controlled)
Transmission: Ethernet 1Gb/s (PoE PD), 9kB jumbo frame, IEEE 802.3at (25W), IEEE 1588 (Precision Time Protocol)
Max. distance between camera and computer: 100m (Cat5e Ethernet cable)
Working temperature: 0°C to +50°C
Storage temperature: —20°C to +70°C
Protection: IP55
Camera dimension: 415 x 270 x 143mm (LxWxH)
Camera weight: 3.6 kg
Egun - StartTime V acoustic start device
Article: 3481.931
Main unit dimensions: 376 x 215 x 245mm w/o Connectors
Microphone dimensions: 118 x 25 x 80 mm. + 7 meter cable
E—GUN dimensions 280 x 35 x 140 mm + 7 meter cable
Alarm “low battery”: Yes, 4 levels indicated as battery symbol (Empty, Low, Medium, Full)
Protection class: IP41
Power: Built in 12 Volt / 7 Ah Sealed lead—acid battery
Standby time: 24 Hours (1000 starts). After this, the unit should still be operable for 1 hour.
The self—discharge time is approximately 12 months if not in use.
An external 12V Lead/Acid battery (car battery) connected to the charger input, could be used if extended operation time is needed.
Charger: Max. initial current: 1.0 Ah (only for use in dry environment).
Speakers: Load 3.2 — 16 Ohms
Output speakers: @13.2 Volts, 3.2 Ohms, 1 kHz Typical: 2 * 13 Watt with < 10 % Distortion Maximum: 2 * 19 Watts with 10 % Distortion
Storage temperature: —20ºC to +65ºC
Working temperature: —10ºC to +65ºC
Relative humidity: (20%—80%) without condensation
