Speed Skating Timing system - ISU Approved
Article: STSS
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing Systems

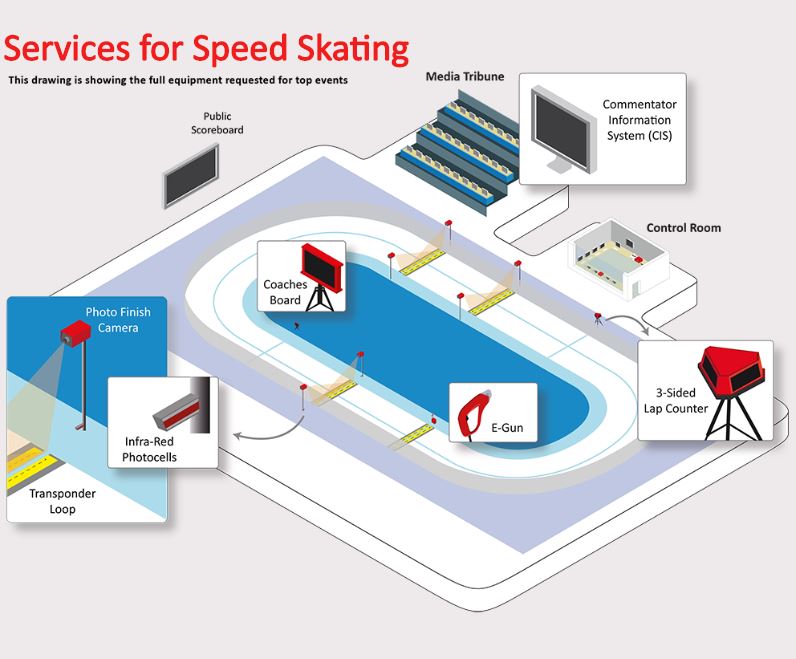

Specifications: is based on light barriers using a multi channel Timer with a certified clock is required to measure all race times, Electronic start gun (E-gun) to indicate the start of the race and Start TimeV with mobile loudspeaker, Lap counter, Photofinish camera Myria, PC with Participants and competition management software In connection with the Timer, it is possible to handle complete Speed Skating competitions at ease.
An optional transponder based Timing system is perfectly suitable for demanding disciplines such as Team Pursuit and Mass Start. Gemeni scoreboard 9 digits lap and rolling time board or Led display for speed skating
Certifications: ISU
General Description:
The Swiss company "Swiss Timing" offers scoring and timing systems for the sports industry. The single features and complete sets strongly depend on the configuration of the sports arena in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.
Another sports equipment from category
Speed Skating Timing system - ISU Approved
Article:STSS
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing Systems
Specifications: is based on light barriers using a multi channel Timer with a certified clock is required to measure all race times, Electronic start gun (E—gun) to indicate the start of the race and Start TimeV with mobile loudspeaker, Lap counter, Photofinish camera Myria, PC with Participants and competition management software In connection with the Timer, it is possible to handle complete Speed Skating competitions at ease.
An optional transponder based Timing system is perfectly suitable for demanding disciplines such as Team Pursuit and Mass Start. Gemeni scoreboard 9 digits lap and rolling time board or Led display for speed skating
Certifications: ISU
OMEGA SCAN'O'VISION MYRIA 10 Camera
Article: 3503.910
Acquisition speed: 500 to 2’000 lines per seconds or 500 to 10’000 lines per seconds
Resolution: 2048 pixels (at any speed)
Nbr. of color per pixel: >16 millions
Time base precision: ±0.1ppm (oven—controlled)
Transmission: Ethernet 1Gb/s (PoE PD), 9kB jumbo frame, IEEE 802.3at (25W), IEEE 1588 (Precision Time Protocol)
Max. distance between camera and computer: 100m (Cat5e Ethernet cable)
Working temperature: 0°C to +50°C
Storage temperature: —20°C to +70°C
Protection: IP55
Camera dimension: 415 x 270 x 143mm (LxWxH)
Camera weight: 3.6 kg
OMEGA PowerTime II Hand-held timer/printer
Article: 3462.900
Dimensions: 210 x 95 x 40 mm
Weight: 410 g (no paper, no batteries)
Display: Alphanumeric LCD, 4 lines of 16 char. each
Timebase type: Thermo—compensated quartz oscillator
Timebase resolution: 1/1000 sec to 1 sec (programmable)
Chronograph: 23.59.59.999 repetitive
Keyboard: 10 numeric keys and 8 function keys
Acoustic signal: 1 KHz
Memory capacity: Maximum 2000 competitors
Printer: 24 alphanumeric characters per line
Print speed: 1,5 s per line
Paper: Thermal, width 58 mm, length 8 m
Printing capacity: 2000 lines per roll
Serial link: RS232 (data); RS485 (display)
External power supply: 9—15 VDC
Internal power supply: 4 alkaline batteries 1.5 V, 1500 mAh, type AA/LR6/UM3
Operating time without serial output: > 30 hours and 2000 printed lines at + 20°C
Operating time with running time on PC and scoreboard: > 12 hours and 2000 printed lines at +20°C
External power: Power jack plug Ø3.5 / 1.9 mm for 9 V power adaptor
Operating temperature: — 10 °C to +50°C
Storage temperature: — 30 °C to +60°C
Printer temp. Range: — 10 °C to +50°C
Protection: IP40
Mains power: 115—230 VAC, 50—60 Hz depending on model
Output voltage: 9V DC 1.2A
Manufacturer Swiss Timing (Switzerland)
