Scoring and Timing systems for Athletics - IAAF Approved
Article: STAT
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing systems

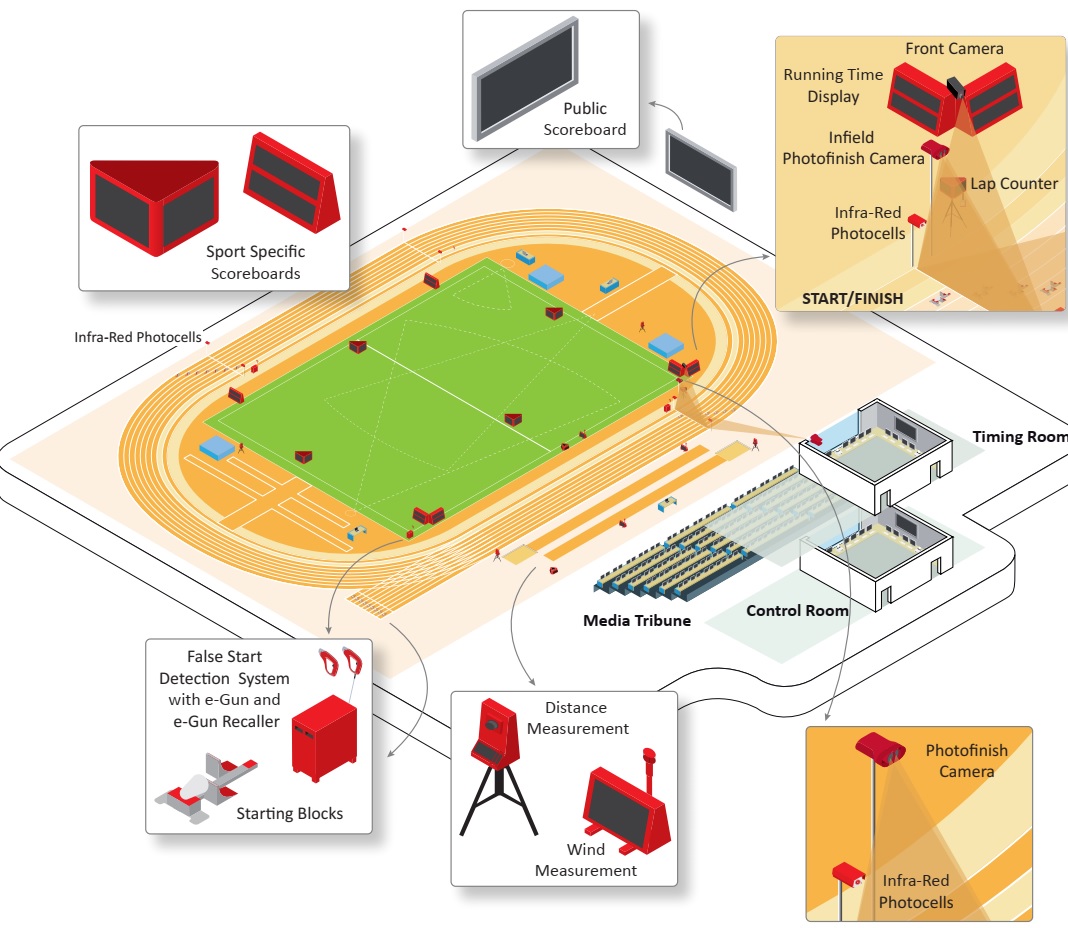

Specifications:
- For running disciplines used: false start detection system AC3 with E-Gun, running time scoreboard GEMINI, photocell ARGES, high speed and light sensitivity photo finish camera MYRIA, 3-sided Lap counter with custom branding Bell and etc.
- For technical disciplines used: Concentration clock BOREAS or LISTO, Electronic distance measurement – EDM, MISTRAL scoreboard with integrated ultrasonic wind sensor, The OIN5 full-colour matrix scoreboard
Sertifcates : IAAF Approved
General Description:
The Swiss company "Swiss Timing" offers scoring and timing systems for the sports industry. The single features and complete sets for Track and field athletic scoring system strongly depend on the configuration of the sports area in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.
Another sports equipment from category
Egun - StartTime V acoustic start device
Article: 3481.931
Main unit dimensions: 376 x 215 x 245mm w/o Connectors
Microphone dimensions: 118 x 25 x 80 mm. + 7 meter cable
E—GUN dimensions 280 x 35 x 140 mm + 7 meter cable
Alarm “low battery”: Yes, 4 levels indicated as battery symbol (Empty, Low, Medium, Full)
Protection class: IP41
Power: Built in 12 Volt / 7 Ah Sealed lead—acid battery
Standby time: 24 Hours (1000 starts). After this, the unit should still be operable for 1 hour.
The self—discharge time is approximately 12 months if not in use.
An external 12V Lead/Acid battery (car battery) connected to the charger input, could be used if extended operation time is needed.
Charger: Max. initial current: 1.0 Ah (only for use in dry environment).
Speakers: Load 3.2 — 16 Ohms
Output speakers: @13.2 Volts, 3.2 Ohms, 1 kHz Typical: 2 * 13 Watt with < 10 % Distortion Maximum: 2 * 19 Watts with 10 % Distortion
Storage temperature: —20ºC to +65ºC
Working temperature: —10ºC to +65ºC
Relative humidity: (20%—80%) without condensation
Manufacturer Swiss Timing (Switzerland)
Electronic distance measurement system
Article: 3142.902
Manufacturer: (Switzerland)
Category: Refereeing and timing systems for athletics
Specifications:
Weight : 6.5 kg
Battery life : 6 — 8 hours
Maximum range : 3000 m (prism)
250 m (reflective tape), 150 m (reflectorless)
Minimum range : 1.5 m
Accuracy : 2 mm
Measuring time : 1.5 s
Display: colored LCD
Interface language : selectable
Data connection : RS232 or optional Bluetooth
Operating temperature : —20 to 50°C (operating)
Storage temperature : —40 to 70°C (storage)
Humidity : 95% (non—condensing)
Sertifcates: IAAF Approved
Lap Counter
Article: 3442.911
Power supply: 115 — 230 VAC 50/60Hz
Power consumption: Max 0.6A
Data transmission: RS422, 9600 Bauds, 8 data bit, no parity, 1 stop bit
Dimension without tripod: 750 x 650 x 510 mm
Weight without tripod: 15.6kg
Height of digits: 260 mm
Viewing distance, up to: 130 m
Horizontal viewing angle: 110o
Display type: Amber LED (150 LEDs per digit)
Display luminosity: 15 steps adjusted manually or automatically with a light sensor.
Protection: IP54
Manufacturer Swiss Timing (Switzerland)
