Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' '<p>Malmsten</p>' 'Sportsystem' '<p>Seicom</p>'

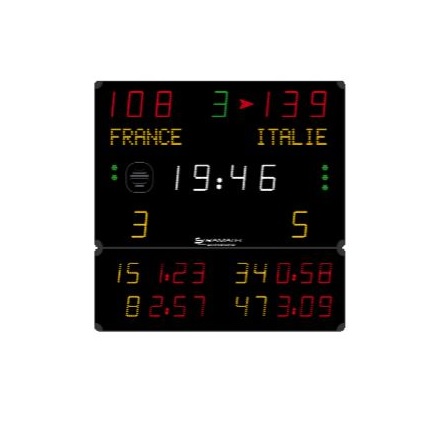

Multisport scoreboard 452 MS 3103

Multisport scoreboard 452 MS 3103 AVSR1032

Article: AVSR1032

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 60m, angle >160°

Dimensions: 1500 x 1500 x 90mm

Weight: 36 kg

Power supply: 230V / 50-60Hz

Power consumed: 170 VA

Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)

Horn: 1x integrated horn, 116dB at 1m

Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (15 cm)
Period: 1 green LED digit (15 cm)
Team names: 20 yellow LED alphanumerical characters (9 cm)
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (15 cm) + blinking points
Team fouls (BB) or sets (VB, T, TT...): 2 x 1 yellow LED digits (15 cm)
Time out (BB, HB, VB) or No. of exclusions (HB): 2 x 3 green LED points
Excluded player (HB) or set result for home team (VB, T, TT...): 4 x 2 yellow LED digits (12 cm)
Penalty timer (HB) or Time-out timer (BB) or set result for guest team (VB, T, TT...): 4 x 3 red LED digits (12 cm) + blinking points

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to request

Another sports equipment from category

Ice hockey scoreboard 452 GE 9000 Ice hockey scoreboard 452 GE 9000

Article:AVSR1049
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 1900 x 1150 x 90mm
Weight: 35 kg
Power supply: 230V / 50—60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ

Judo scoreboard CJF Judo scoreboard CJF

Article:AVSR1062
Use : Indoor
Transmission : Radio or cable controlled
Readability : 60 m, angle >160°
Dimensions : 2000 x 1000 x 90 mm
Weight : 34kgs + 9Kgs (wheel stand)
Power supply: 230v/60 Hz
Protection : Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated horn : 100 dB at 1 m

Multisport scoreboard 452 MB 3123-2 Multisport scoreboard 452 MB 3123-2

Article: AVSR1018
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3200 x 2000 x 90mm
Weight: 102 kg
Power supply: 230V / 50—60Hz
Power consumed: 269 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 1x internal horn, 116dB at 1m
Programmable team names or moving messages display for 1000 characters
Player number: 2 yellow LED digits (6 cm) per player (12)
FIBA approved
