Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

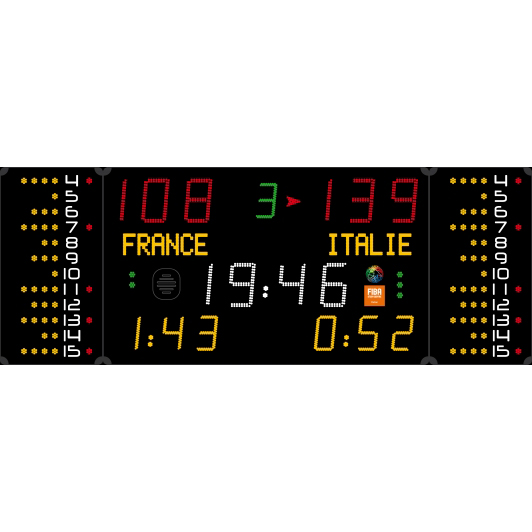

Multisport scoreboard 452 MB 7120

Article: AVSR1014

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 110m, angle >160°

Dimensions: 3100 x 1150 x 90mm

Weight: 57 kg

Power supply: 230V / 50-60Hz

Power consumed: 195 VA

Protection: Unbreakable matte polycarbonate front face (DIN 18032-3)

Integrated Horn: 116dB at 1m

Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²

FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (25 cm)
Period: 1 green LED digit (20 cm)
Programmable team names: 20 yellow alphanumerical characters (12 cm)
Moving messages (Pub/Sponsor): 1000 characters
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Team fouls (BB)/ Exclusion timer: 2 x 3 yellow LED digits (20 cm)
Time out (BB, HB, VB) /Number of exclusions (HB): 2 x 3 green points
Individual fouls (BB) 5 yellow points + 1 red points for each player (12)

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MB 3023 Multisport scoreboard 452 MB 3023

Article:AVSR1017
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3100 x 1600 x 90mm
Weight: 80 kg
Power supply: 230V / 50—60Hz
Power consumed: 209 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Horn: 1x integrated horn, 116dB at 1m
Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.

Multisport scoreboard 452 ME 800 Multisport scoreboard 452 ME 800

Article:AVSR1037
Use : Indoor
Transmission : Radio (868 MHz) or cable
Readability : 60m, angle >160°
Dimensions : 1000 x 640 x 90mm
Weight : 14 kg
Power supply : 230V / 50—60Hz
Power consumed: 60 VA
Protection : Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn : 116dB at 1m
Mains cable (supplied) : 5 m – Typ: 230V, 3G, 0.75 mm²

Multisport scoreboard 452 MF 7100 Multisport scoreboard 452 MF 7100

Article:AVSR1002
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 229 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1
