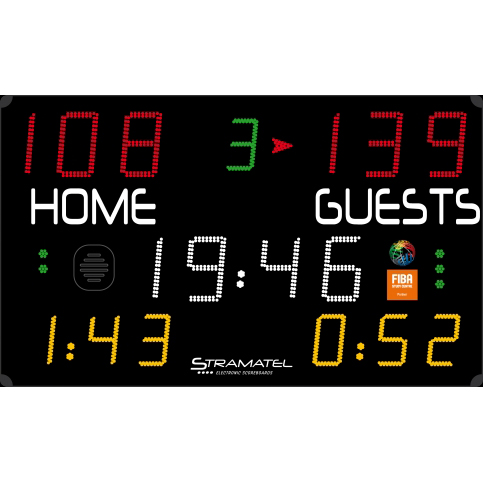

Multisport scoreboard 452 MB 7000

Article: AVSR1011

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 110m, angle >160°

Dimensions: 1900 x 1150 x 90mm

Weight : 35 kg

Power supply : 230V / 50-60Hz

Power consumed: 98 VA

Protection : Unbreakable matte polycarbonate front face (DIN 18032-3)

Integrated Horn : 116dB at 1m

Mains cable (supplied) : 25 m – Type: 230V, 3G, 0.75 mm²

FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (25 cm)
Period: 1 green LED digit (20 cm)
Ball possession: 2 red LED arrows
Timer/Rest period : 4 white LED digits (25 cm) + blinking points
Team fouls (BB)/ Sets won (VB)/ Exclusion timer (HB) : 2 x 3 yellow LED digits (20 cm)
Number of Time out (BB, HB, VB)/ penalty in progress (HB) : 2 x 3 green points
Day Time : When the scoreboard is not in use
Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MD 7120-2 Multisport scoreboard 452 MD 7120-2

Article:AVSR1041
Dimensions: 2700 x 1300 x 90 mm
Weight: 56 Kg
Digit height: 20 and 16 cm
Distance of readability: 90 m
Angle of readability: 160°
Display: LEDs (SMD)
Programmable team names or moving messages display for 1000 characters
Player number: 2 yellow LED digits (6 cm) per player (12)
FIBA approved

Multisport scoreboard 452 MB 7120 Multisport scoreboard 452 MB 7120

Article:AVSR1014
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3100 x 1150 x 90mm
Weight: 57 kg
Power supply: 230V / 50—60Hz
Power consumed: 195 VA
Protection: Unbreakable matte polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.

Multisport scoreboard 452 MF 7100 Multisport scoreboard 452 MF 7100

Article:AVSR1002
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 229 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1
