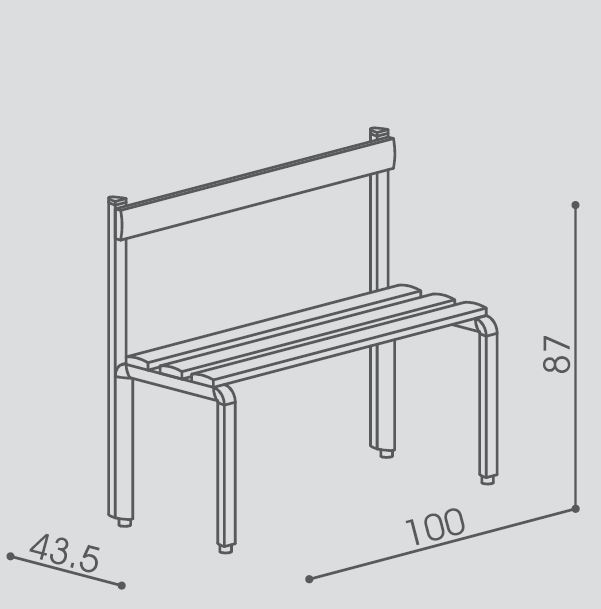

Bench with backrest series “Q”
Article: AVGS1009
Made in: EU.
Material: aluminium profile, HPL, 12 colors to choose.
Standard measurements:
Height:87 cm
Depth: 43,5 cm
Length: 100, 200 cm.
Construction details
supporting structure is a shaped anodised aluminium profile measuring 60 x 44 mm, with no welding for easy maintenance and longer life
seat slats in anodised aluminium measuring 85 x 20 mm, closed at the front and back (with a minimum thickness of mm 1.5) and reinforced internally by two ribs or solid sheet HPL
bench seat formed with a PVC shaped cover available in grey, light blue and orange
joint in grey nylon reinforced with a steel core which guarantees exceptional strength and flexibility
slats fixed with stainless steel screws
nylon side plugs to close the slats
adjustable steel feet covered in grey nylon
the aluminium used conforms to 7070 alloy in compliance with the UNI-EN 573-3 standard
Another sports equipment from category
Hand dryers AVRZ1007
Article: AVRZ1007
Made in EU.
Material: Crome—nickel steel casing
[Air exhaust (m3/h):] 258
[Exhaust temp. (°C):] 65
[Nominal output (Watt):] 2000
[Weight (kg):] 6.5
[Dimensions (BxHxT):] 298x396x150 mm
Operating voltage 230V.
Sound level 65 dB.
Air Stream 2000 and MFLW 2 optoelectronic motion detection (range 0–40 cm).
Lockers “Q” series
Article:AVGS1001
Made in: EU.
Material:HPL, 12 colors to choose.
Standard locker measurements:
Height: 30 – 45 – 60 – 90 —180 cm
Width: 30 – 40 – 50 cm
Depth: 50 cm
Locker can consist of 4 cells wide and 6 cells high.
At the base:
— legs 10, 20 cm high;
— bench stand, height: 45 cm, depth: 83 cm.
Bench series “Q”
Article:AVGS1008
Made in: EU.
Material: aluminium profile, HPL, 12 colors to choose.
Standard measurements:
Height: 46 cm
Depth: 40 cm
Length: 100, 150, 200 cm.
