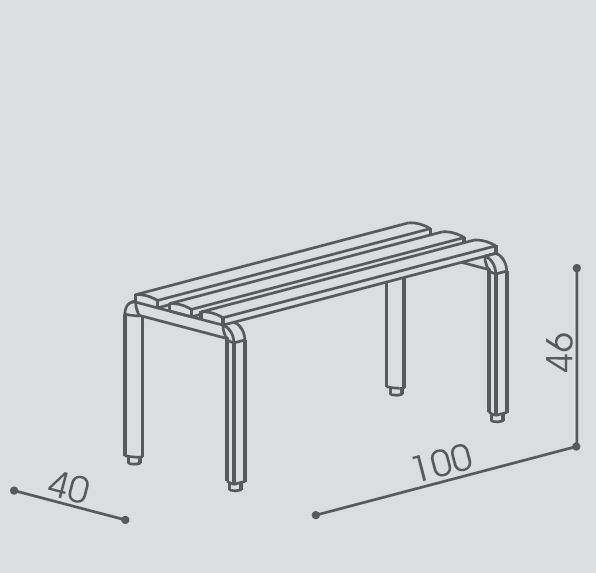

Bench series “Q”
Article: AVGS1008
Made in: EU.
Material: aluminium profile, HPL, 12 colors to choose.
Standard measurements:
Height: 46 cm
Depth: 40 cm
Length: 100, 150, 200 cm.
Construction details
supporting structure is a shaped anodised aluminium profile measuring 60 x 44 mm, with no welding for easy maintenance and longer life
seat slats in anodised aluminium measuring 85 x 20 mm, closed at the front and back (with a minimum thickness of mm 1.5) and reinforced internally by two ribs or solid sheet HPL
bench seat formed with a PVC shaped cover available in grey, light blue and orange
joint in grey nylon reinforced with a steel core which guarantees exceptional strength and flexibility
slats fixed with stainless steel screws
nylon side plugs to close the slats
adjustable steel feet covered in grey nylon
the aluminium used conforms to 7070 alloy in compliance with the UNI-EN 573-3 standard
Another sports equipment from category
VIP locker room individual module
Article:AVSS1387
Composed of main cabin with shelves and clothes hanger rail, side column with shelves and lockable door, all the above made in colored hpl, including synthetic leather covered armchair to be installed inside main cabin. Solution to be totally customized on dimensions, finishing, chromatic combinations over than the choice of armchair model. Made in EU.
Bench for disabled people
Article:AVSS1398
Steel structure. Reclining seating area cm 100×60 with double shelves. Made in EU.
Lockers “Q” series
Article:AVGS1001
Made in: EU.
Material:HPL, 12 colors to choose.
Standard locker measurements:
Height: 30 – 45 – 60 – 90 —180 cm
Width: 30 – 40 – 50 cm
Depth: 50 cm
Locker can consist of 4 cells wide and 6 cells high.
At the base:
— legs 10, 20 cm high;
— bench stand, height: 45 cm, depth: 83 cm.
