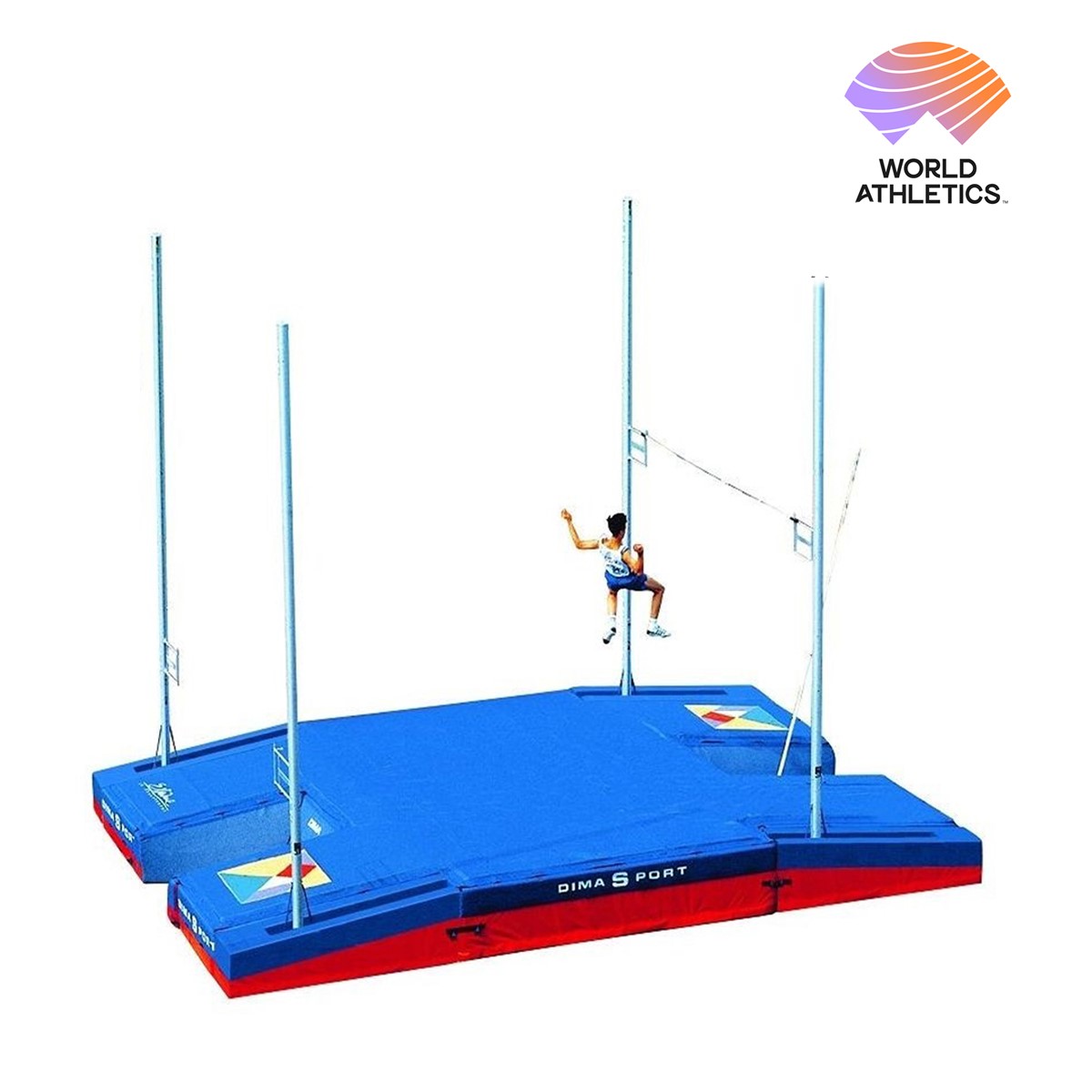

International double-front up & down comfort plus single cover pole vault landing system

International double-front up & down comfort plus single cover pole vault landing system AVDM1023

Article: AVDM1023

Dimensions: 11.00 X 6.00 X 0.87 / 0.47 M

Distance between vault boxes: 7.00 m

Colour: Red, blue

Level: F.F.A / I.A.A.F LEVEL 2

Compliance with: NF EN 12503-2 type 11 certified.

The blocks and the upper mat are covered with weather-resistant synthetic material, the upper side of which is covered with a mesh to protect against studded shoes.
Uprights rolling bases fully integrated within the landing system.
The upper mat is 7 cm thick with a cover made of material that protects from studded shoes.
Metric marking to adjust the position of uprights.
The block filler is made of polyurethane foam with a density of 24 kg / m³.
Blocks, mats connected by belts.
Additional upper mat-cover.
Double font extensions 200 cm.
The central sections rest on a galvanized platform.
Made in EU.

Price: 25169€

Add to your inquiry to the project manager

Another sports equipment from category

Pole Vault Crossbar 4.5 m. IAAF certificate. Pole Vault Crossbar 4.5 m. IAAF certificate.

Article: AVNO0028
Made of high quality fibreglass and equipped with approved end pieces according to new IAAF rules. Length 4.5 m. Made in EU.

Vault box Vault box

Article: AVDM1033
Material: Galvanized steel.
Colour: Grey.
Compliance with: I.A.A.F certified n° E—99—0092.

Standard rail to be embedded with sliding cart and cover Standard rail to be embedded with sliding cart and cover

Article: AVDM1200
Ideal for indoor use or for multi—sport areas.
Rails made of high quality steel, fitted into an aluminum frame box for a controlled and safe installation. Lid to be covered with synthetic.
Width of the frame : 380 mm
Length of the frame and rail: 1500 mm
Width of rail : 350 mm
The sliding carts can be equipped with either ref. AVDM1028 or AVDM1029 pole—vault uprights.
Made in EU.
