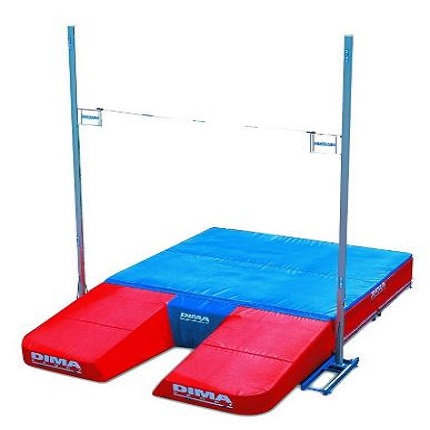

Reversible meeting modular pole vault landing system with platform 7,00 x 5,00 x 0,90/0,50 m

Article: AVDM1018

Modular reversible landing area for national-level competitions, equipped with a metal platform and providing maximum adaptability to wind conditions.

Description:

The reversible modular landing area is designed in accordance with the requirements of the French Athletics Federation (FFA) and World Athletics specifications for national-level competitions. The system is certified according to NF EN 12503-2 Type 11 and provides a high level of athlete safety and comfort.

A key feature of the system is the ability to perform jumps under optimal conditions regardless of wind direction. The front extensions feature a reversible design and can be installed on either side without dismantling the central section, allowing rapid adaptation to changes in wind direction.

The central sections of the system are positioned on a galvanised metal platform measuring 500 × 385 × 10 cm. The platform is raised by 10 cm and equipped with wide supports and side guides for securing the mats. The system is supplied as separate elements with clamping fasteners. The distance between the pole boxes is 6,15 m.

The system is based on Airfoam blocks — a combination of high-quality foam panels with different densities and load-bearing capacities, providing controlled, stable and durable landings for athletes of any weight and from any height.

Each Airfoam block is enclosed in an individual cover, equipped with a fastening system with straps and buckles, and can be easily replaced or repositioned. All blocks are equipped with reinforced tear-resistant handles for convenient transport.

The top of the system is covered with a 7 cm thick protective mat with anti-spike protection, providing an even, comfortable and uniform landing surface. The design allows the modules to be turned over, reducing wear and extending the service life of the system, as well as simplifying storage and dismantling.

Advantages:

● Compliance with FFA and World Athletics requirements (national level)

● NF EN 12503-2 Type 11 certification

● Reversible design for use regardless of wind direction

● Double-sided front extensions

● Rapid configuration change without dismantling the central section

● Galvanised metal platform

● Increased stability and safety

● Modular construction with interchangeable blocks

● Airfoam technology for controlled landings

● 7 cm thick anti-spike upper mat

Included Components:

● Modular landing area based on Airfoam blocks — 1 set

● Reversible front extensions — set

● Metal platform (galvanised) — 1 set

● Upper protective mat with anti-spike protection (7 cm) — 1 pc.

Technical Specifications:

● Type — reversible modular pole vault landing area

● Construction — modular, double-sided, on platform

● Use level — competition / national

● Placement — indoors / outdoors

● Certification — NF EN 12503-2 Type 11

Materials:

● Filling — Airfoam (foam panels of different densities)

● Block covers — individual, removable

● Block fastening — straps and buckles

● Handles — reinforced, tear-resistant

● Upper surface — anti-spike fabric

● Side surfaces and base — PVC 650 g/m²

● Perimeter and overlap — anti-spike fabric

● Marking — white Velcro strip (zero line)

Dimensions:

● Length: 7000 mm

● Width: 5000 mm

● Height: 900/500 mm

● Platform length: 5000 mm

● Platform width: 3850 mm

● Platform height: 100 mm

● Distance between pole boxes: 6150 mm

Colour:

● Standard colour — blue and red

Manufacturing:

● EU

Sport: Athletics

Category: Sports equipment

Subcategory: Landing areas (pole)

Discipline: Pole vault
