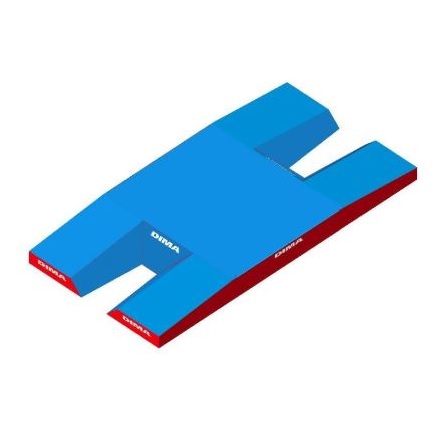

Meeting double-front pole vault landing system 10,00 x 5,00 x 0,80/0,50 m

Article: AVDM1021

Competition landing area with double front extensions, providing optimal conditions for pole vaulting regardless of wind direction.

Description:

The landing area is designed in accordance with the requirements of the French Athletics Federation (FFA) and World Athletics specifications for national-level competitions. The product is certified according to NF EN 12503-2 Type 11 and has approved overall dimensions ensuring a high level of athlete safety.

A key feature of the system is the double front extensions, allowing jumps to be performed under the most favourable wind conditions. This design provides maximum comfort for athletes and convenience for competition organisers without the need to change the main configuration of the system.

The distance between the pole boxes is 6,00 m, which complies with the requirements for national-level competitions.

The construction is based on Airfoam blocks — a combination of high-quality foam panels with different densities and load-bearing capacities, providing controlled, stable and durable landings for athletes of any weight and from any height.

The side surfaces and base of the system are protected with 650 g/m² PVC fabric. The upper surface and perimeter overlap are made of anti-spike fabric, which improves air evacuation and increases landing comfort. A white Velcro strip is positioned on the upper part of the cover to indicate the zero line.

Advantages:

● Compliance with FFA and World Athletics requirements (national level)

● NF EN 12503-2 Type 11 certification

● Double front extensions

● Optimal conditions for pole vaulting regardless of wind direction

● Approved dimensions for enhanced safety

● Airfoam technology for controlled landings

● Reinforced side surfaces and base

● Anti-spike upper surface

● Efficient air evacuation around the perimeter

● Clear zero-line marking

Included Components:

● Landing area based on Airfoam blocks — 1 set

● Double front extensions — 1 set

Technical Specifications:

● Type — Pole Vault Landing Area

● Construction — double-front design

● Use level — competition / national

● Placement — indoors / outdoors

● Certification — NF EN 12503-2 Type 11

Materials:

● Filling — Airfoam (foam panels of different densities)

● Cover — one-piece, removable

● Side surfaces and base — PVC 650 g/m²

● Upper surface and perimeter — anti-spike fabric

● Marking — white Velcro strip (zero line)

Dimensions:

● Length: 10000 mm

● Width: 5000 mm

● Height: 800/500 mm

● Distance between pole boxes: 6000 mm

Colour:

● Standard colour — blue and red

Manufacturing:

● EU

Sport: Athletics

Category: Sports equipment

Subcategory: Landing areas (pole)

Discipline: Pole vault
