ARGES reflex photocell
Article: 3459.900
Battery type : 3xAA or UM-3
Average battery life : ~ 20h (with alkaline batteries)
Battery indicator : 4 levels battery symbol
Dimensions : 188 x 57 x 95 mm
Photocell weight : 915 g (incl. batteries)
Reflector weight : 160 g
Fixing : UNC 1/4" mounting thread
Operating temperature : -30°C to 70°C
Storage temperature : -40°C to 85°C
Operating distance : up to 30m
Response time : < 1 ms sensing time
Relative humidity : up to 95% (non-condensing)
Protection class : IP54
Manufacturer Swiss Timing (Switzerland).

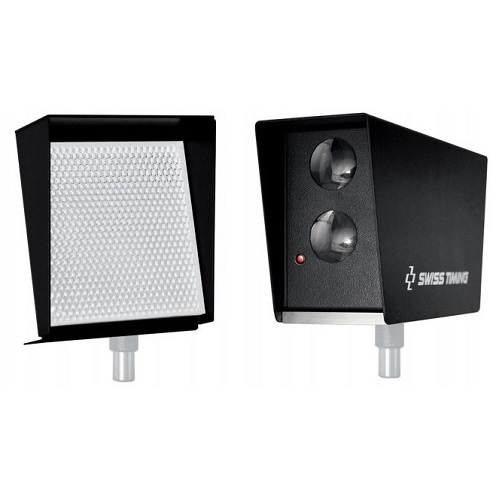

The ARGES Reflex Photocell consists of a transmitter and a reflector unit. The transmitter produces an infrared
beam that is reflected on the photocell reflector, which serves as a mirror when correctly aligned opposite.
Anything or anyone that crosses the field of the beam creates an interruption which is instantly reported to a
timing device accordingly to meet the International Sport Federations standards. The ARGES Reflex Photocell
allows a simple and constant monitoring of the cell alignment. It features an internal and accessible battery
lodging and can also be connected to an external battery or a DC power supply. The two outputs contacts allow
to connect the ARGES to two different timing devices simultaneously (main & back-up for example). The new
ARGES Reflex Photocell also features a completely accessible DIL switch panel on the side of the photocell
allowing users to choose from the many operating modes and options. The ARGES Reflex Photocell is a highly
precise and reliable timing device even in extreme meteorological conditions and temperatures.
