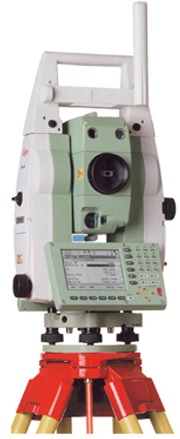

Electronic distance measurement system

Article: 3142.902

Manufacturer: (Switzerland)

Category: Refereeing and timing systems for athletics

Specifications:
Weight : 6.5 kg
Battery life : 6 — 8 hours
Maximum range : 3000 m (prism)
250 m (reflective tape), 150 m (reflectorless)
Minimum range : 1.5 m
Accuracy : 2 mm
Measuring time : 1.5 s
Display: colored LCD
Interface language : selectable
Data connection : RS232 or optional Bluetooth
Operating temperature : —20 to 50°C (operating)
Storage temperature : —40 to 70°C (storage)
Humidity : 95% (non—condensing)

Sertifcates : IAAF Approved

General Description:

High precision device for distance measurement. The Athletics Measurements application allows measurements to be taken for athletics field events such as: Pole Vault, Triple Jump, Long Jump, Discus, Hammer, Shot Putt and Javelin. Distances and heights are recorded according to the rules set out in the Competition Rules Handbook of the International Association of Athletics Federation (IAAF). Serial output to connect a computer. Includes tripod, RS232 interface cable, transportation case, external battery, battery charger and mirror. This system provides intelligent targeting to automatically locate the reflector

Add to your inquiry to the project manager

Another sports equipment from category

Athletics false start detection system ASC3 Athletics false start detection system ASC3

Article: 3457.900
Manufacturer: Swiss Timing (Switzerland)
Model: ASC3 Automatic Start Control
Category: false start detection system
Specifications:
Suitable for all competition levels, Monitor up to 10 lanes simultaneously.
Acoustic signal in case of false start, Force curve display for each lane. On—line transfer data via a serial line. 115—230 VAC, internal battery (6 hours autonomy). Timer, headset, printer and Electronic starting system: E—gun are included
Sertifcates: IAAF Approved

Electronic distance measurement system Electronic distance measurement system

Article: 3142.902
Manufacturer: (Switzerland)
Category: Refereeing and timing systems for athletics
Specifications:
Weight : 6.5 kg
Battery life : 6 — 8 hours
Maximum range : 3000 m (prism)
250 m (reflective tape), 150 m (reflectorless)
Minimum range : 1.5 m
Accuracy : 2 mm
Measuring time : 1.5 s
Display: colored LCD
Interface language : selectable
Data connection : RS232 or optional Bluetooth
Operating temperature : —20 to 50°C (operating)
Storage temperature : —40 to 70°C (storage)
Humidity : 95% (non—condensing)
Sertifcates: IAAF Approved
