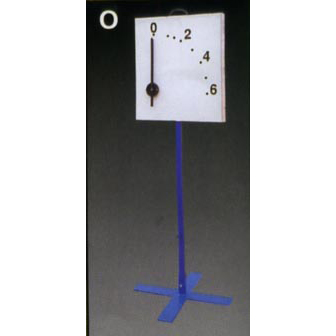

Time Elapsed Clock

Scoring and Timing systems for Athletics - World Athletics Approved

Article:STAT
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing systems
Specifications:
— For running disciplines used: false start detection system AC3 with E—Gun, running time scoreboard GEMINI, photocell ARGES, high speed and light sensitivity photo finish camera MYRIA, 3—sided Lap counter with custom branding Bell and etc.
— For technical disciplines used: Concentration clock BOREAS or LISTO, Electronic distance measurement – EDM, MISTRAL scoreboard with integrated ultrasonic wind sensor, The OIN5 full—colour matrix scoreboard
Sertifcates: World Athletics Approved

MISTRAL Integrated wind gauge

Article: 3436.900
Measurement duration: 5, 10 or 13 seconds, 1 to 30 seconds with RS422 serial remote control
Display: Amber LED, 250mm height
Display luminosity: 4 steps automatically adjusted with a light sensor
Display duration: 3 minutes after each measurement
Power: 115 / 230VAC 50/60 Hz, max. 0.5A
Internal battery autonomy: ~12 hours* at maximum luminosity, ~60 hours* at minimum luminosity
Wind speed range: —9.9m/s to +9.9m/s
Wind speed accuracy: ±0.1m/s
Operating temperature: 0 °C to +50 °C
Storage temperature: —25 °C to +70 °C
Moisture protection: IP54 (IP65 for the head)
Dimensions (closed): 850 x 760 x 200 mm
Dimensions (maximum open): 850 x 1390 x 415 mm
Weight with head: 21 kg
Manufacturer Swiss Timing (Switzerland)

Egun - StartTime V acoustic start device

Article: 3481.931
Main unit dimensions: 376 x 215 x 245mm w/o Connectors
Microphone dimensions: 118 x 25 x 80 mm. + 7 meter cable
E—GUN dimensions 280 x 35 x 140 mm + 7 meter cable
Alarm “low battery”: Yes, 4 levels indicated as battery symbol (Empty, Low, Medium, Full)
Protection class: IP41
Power: Built in 12 Volt / 7 Ah Sealed lead—acid battery
Standby time: 24 Hours (1000 starts). After this, the unit should still be operable for 1 hour.
The self—discharge time is approximately 12 months if not in use.
An external 12V Lead/Acid battery (car battery) connected to the charger input, could be used if extended operation time is needed.
Charger: Max. initial current: 1.0 Ah (only for use in dry environment).
Speakers: Load 3.2 — 16 Ohms
Output speakers: @13.2 Volts, 3.2 Ohms, 1 kHz Typical: 2 * 13 Watt with < 10 % Distortion Maximum: 2 * 19 Watts with 10 % Distortion
Storage temperature: —20ºC to +65ºC
Working temperature: —10ºC to +65ºC
Relative humidity: (20%—80%) without condensation
Manufacturer Swiss Timing (Switzerland)
