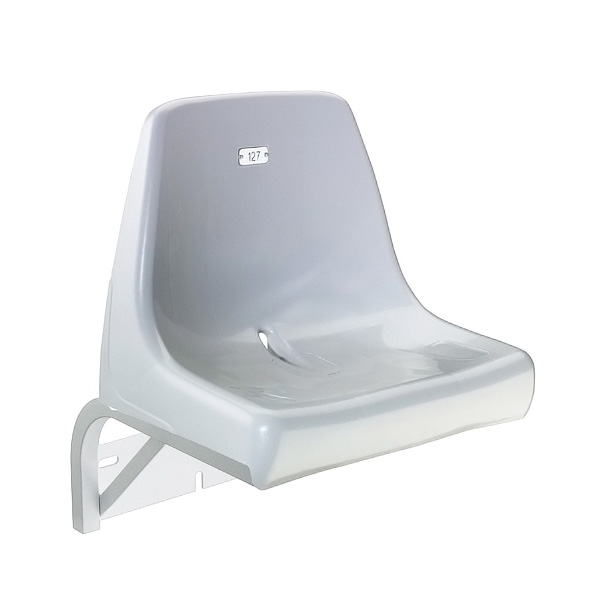

Stadium seats M2009-M2009 SMALL metallic console - UEFA recommendations and FIBA approved

Article: stadium-seats-m2009-m2009-small-metallic-console---uefa-recommendations-and-fiba-approved

Made in: EU

Model: M2009-M2009 SMALL metallic console

Category: Tribune, seats

Technicals Features:

High back seat, UEFA reccomandations and FIBA approved. Ideal for narrow step depth. Upon request is available the SMALL version with depth 300 mm. The shape of the seat allows the user to enjoy the sporting event in comfort, without sacrificing strength and durability thanks to the 3 fixing points and the numerous ribs under the seat and behind the back.

OVERALL DIMENSIONS M2009

Height 350 mm; depth 320 mm; width 440 mm

OVERALL DIMENSIONS M2009 SMALL

Height 350 mm; depth 300 mm; width 440 mm

MATERIAL

Polypropylene (PP) or polyamide (PA); injection moulded

INSTALLATION

Directly on concrete step, on riser mounted polyamide or metallic bracket, on metal beam 2-3-4-5 seats

FIXING

Provides from 1 to 3 fixing points if installed directly on concrete step; up to 5 fixing points when installed on polyamide/metal bracket or on metal beam.

DRAINAGE
Central draining hole in the rear part which prevents the accumulation of dirt.
ACCESSORIES
PVC or aluminium numbered label secured by means of anti-tear rivets, metal fixing device, removable padded cover in imitation leather or fabrics; metallic armrest with plastic pad eventually complete of glass holder.
