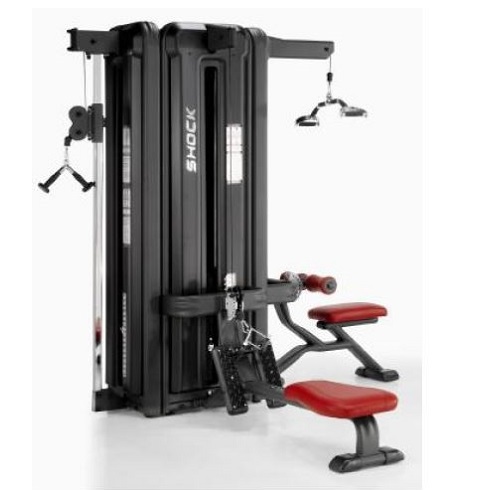

Station pulley

Article: AVTJ3013

Length: 2298 mm.

Width: 1928 mm.

Height: 2235 mm.

Weight: 245 Kg

Main frame: Steel tube of 120x50x2mm OVAL. and 100x50x2 mm.

Pictogram instructions included.
Label Warning signs and safety of use.
Needle selection of the weights of aluminum magnet to prevent falling when
performing the exercises and spiral wire to prevent their loss.
Cable traction weights: Steel in a 7x19 configuration with 3 +1 mm. in diameter and coated with polyamide to 4 mm. with a breaking strength of 560 K.
Pulleys: Made of polypropylene, double sealed bearings and precision ground to ensure long life of the cables, smooth movement and maximum durability.
Fairings: Cowl of the towers where the weights on ABS to improve the appearance and increase safety.
Safety: Machine manufactured under UNE-EN 957.1 and 957.2
Plates or weights, gauge steel, polyamide caps have a smoother operation and avoid noise in the exercise.
Load: 100 + 100 + 80 + 80 K. (plates or weights of 5 K.) Output low pulley with a seat and 100 K. output high pulley seat and 100 k. Out-crossing to a hand pulley and for biceps / triceps 80 K. Output triceps 80 K.
Height adjustable leg rest (chrome).
The supports are placed where the feet are covered RILSAN 2 mm. thick.
The grips are nonallergic and non-slip.
Painting: Metal parts undergo degreasing and phosphate tunnel, then passes
through an electrostatic paint booth and painted with polyester powder paint. Passed through an oven for curing at 220 °
Made in EU.
