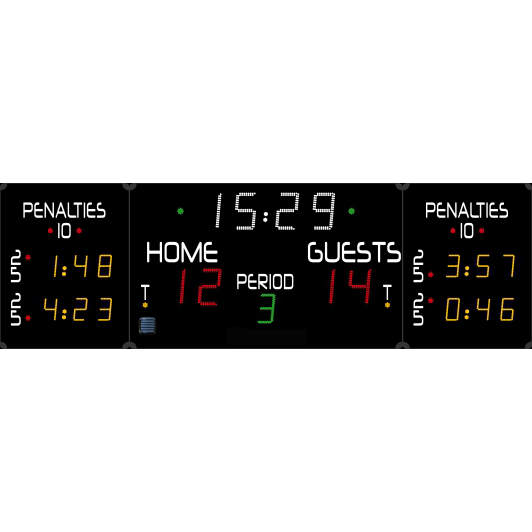

Scoreboard for Ice Hockey 452 GB 9020
Article: AVSR1052
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3700 x 1150 x 90mm
Weight: 68 kg
Power supply: 230V / 50-60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
DISPLAY FUNCTIONS:
Score: 2 x 2 red LED digits (25 cm)
Team names: 20 yellow LED alphanumerical characters (12cm)
Moving messages (Ads/Sponsor): 1000 characters
Period: 1 green LED digit (20 cm)
Time stop indicator: 2 x 1 green LED dot
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Time out indicator: 2 x 1 yellow LED dot
Exclusions timers: 2 x 3 red LED digits (20cm) (for each module)
Display of 2 penalties per team:
2 running penalties + 1 wait-listed penalty.
Penalty indicators: 6 red LED dots for 2’, 5’ penalties and misconduct (10’)(for each module)
Supported sports: ice hockey
Made in EU.
Another sports equipment from category
Multisport scoreboard 452 MS 7020-2
Article:AVSR1009
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1300 x 90mm
Weight: 53kg
Power supply: 230V / 50—60Hz
Power consumed: 113VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
Multisport scoreboard 452 MB 3123-123
Article: AVSR1045
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 5300 x 2000 x 90mm
Weight: 170 kg
Power supply: 230V / 50—60Hz
Power consumed: 610 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 1x internal horn, 116dB at 1m
Programmable team names or moving messages display for 1000 characters
Player number: 2 yellow LED digits (9 cm) per player (12)
Player points — 2 red LED digits (9 cm) per player
Player names (2 modules): 10 yellow LED alphanumerical characters (9 cm) per player (12)
3 lines of penalty time
Multisport scoreboard 452 MB 3123-2
Article: AVSR1018
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3200 x 2000 x 90mm
Weight: 102 kg
Power supply: 230V / 50—60Hz
Power consumed: 269 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 1x internal horn, 116dB at 1m
Programmable team names or moving messages display for 1000 characters
Player number: 2 yellow LED digits (6 cm) per player (12)
FIBA approved
