Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

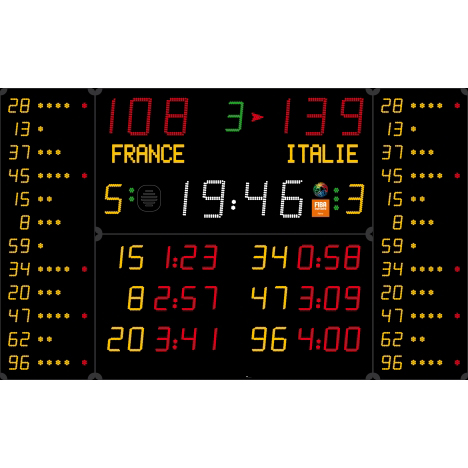

Multisport scoreboard 452 MB 3123

Article: AVSS1018


Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3100 x 1600 x 90mm
Weight: 80 kg
Power supply: 230V / 50—60Hz
Power consumed: 269 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 1x internal horn, 116dB at 1m
Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (25 cm)
Period: 1 green LED digit (20 cm)
Team names: 20 yellow LED alphanumerical characters (12 cm)
Moving messages (Ads/Sponsor): 1000 characters
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Team fouls (BB)/sets (VB, T, TT...): 2 yellow LED digits (20 cm)
Time out (BB, HB, VB) / No. of exclusions (HB): 2 x 3 green LED points
Excluded player (HB) / last penalized player (BB) / set result for home team (VB, T, TT...): 4 x 2 yellow LED digits (16 cm)
Penalty timer (HB)/Time-out timer (BB) / No. of individual fouls for last penalized player(BB)/ set result for guest team (VB, T, TT...): 4 x 3 red LED digits (16 cm) + blinking points
Individual fouls (BB) 2 modules: 5 yellow LED points + 1 red LED point per player (12)

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MB 7020-2 Multisport scoreboard 452 MB 7020-2

Article:AVSS1015
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3200 x 2000 x 90mm
Weight: 105 kg
Power supply: 230—220V / 50—60Hz
Power consumed: 210 VA
Protection: Unbreakable matte polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 3 x 20 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.

Multisport scoreboard 452 ME 800 Multisport scoreboard 452 ME 800

Article:AVSS1037
Use : Indoor
Transmission : Radio (868 MHz) or cable
Readability : 60m, angle >160°
Dimensions : 1000 x 640 x 90mm
Weight : 14 kg
Power supply : 230V / 50—60Hz
Power consumed: 60 VA
Protection : Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn : 116dB at 1m
Mains cable (supplied) : 5 m – Typ: 230V, 3G, 0.75 mm²

Multisport scoreboard 452 MS 7120 Multisport scoreboard 452 MS 7120

Article:AVSS1036
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1000 x 90mm
Weight: 44 kg
Power supply: 230V / 50—60Hz
Power consumed: 153VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
