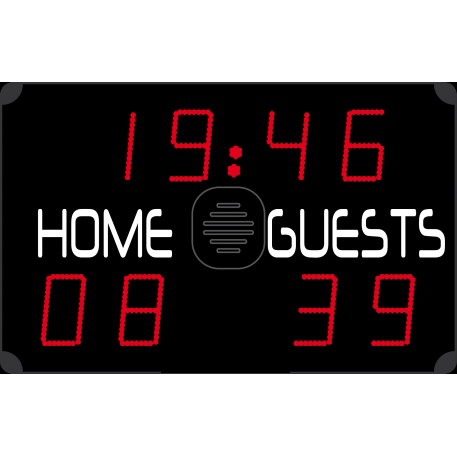

Multisport scoreboard 452 ME 800

Article: AVSR1037

Use : Indoor

Transmission : Radio (868 MHz) or cable

Readability : 60m, angle >160°

Dimensions : 1000 x 640 x 90mm

Weight : 14 kg

Power supply : 230V / 50-60Hz

Power consumed: 60 VA

Protection : Unbreakable mat polycarbonate front face (DIN 18032-3)

Integrated Horn : 116dB at 1m

Mains cable (supplied) : 5 m – Typ: 230V, 3G, 0.75 mm²



DISPLAY FUNCTIONS:
Score : 2 x 2 red LED digits (15 cm)
Timer/Rest period : 4 red LED digits (15 cm) + blinking points
Day Time : When the scoreboard is not in use

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MS 7120 Multisport scoreboard 452 MS 7120

Article:AVSR1036
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1000 x 90mm
Weight: 44 kg
Power supply: 230V / 50—60Hz
Power consumed: 153VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Programmable team names or moving messages display for 1000 characters

Multisport scoreboard 452 MF 7020 Multisport scoreboard 452 MF 7020

Article:AVSR1003
Dimensions: 4304 x 1800 x 90 mm
Weight : 120 Kg
Digit height : 25 and 30 cm
Distance of readability : 160 m
Angle of readability : 160°
Display : LEDs (SMD)
FIBA approved

Multisport scoreboard 452 MF 7100 Multisport scoreboard 452 MF 7100

Article:AVSR1002
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 229 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1
