Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

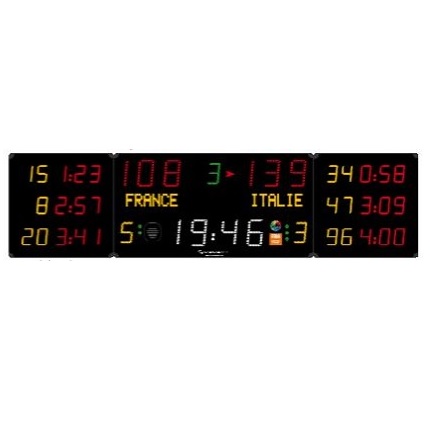

Multisport scoreboard 452 MB 3104 long

Article: AVSR1024

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 110m, angle >160°

Dimensions: 3900 x 1000 x 90mm

Weight: 65 kg

Power supply: 230V / 50-60Hz

Power consumed: 207 VA

Protection: Unbreakable matt polycarbonate front face (DIN 18032-3)

Horn: 1x integrated horn, 116dB at 1m

Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²

FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (25 cm)
Period: 1 green LED digit (20 cm)
Team names: 20 yellow LED alphanumerical characters (12 cm)
Moving messages (Ads/Sponsor): 1000 characters
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Team fouls (BB) /sets (VB, T, TT...): 2 yellow LED digits (20 cm)
Time out (BB, HB, VB)/ No. of exclusions (HB): 2 x 3 green LED points
Excluded player (HB) /set result for home team (VB, T, TT...): 6 x 2 yellow LED digits (16 cm)
Penalty timer (HB) / Time-out timer (BB) / set result for guest team (VB, T, TT...): 6 x 3 red LED digits (16 cm) + blinking points

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Ice hockey scoreboard 452 GB 9020-2 Ice hockey scoreboard 452 GB 9020-2

Article:AVSR1053
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 4900 x 1150 x 90mm
Weight: 90 kg
Power supply: 230V / 50—60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ

Scoreboard for Ice Hockey 452 GB 9020 Scoreboard for Ice Hockey 452 GB 9020

Article:AVSR1052
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3700 x 1150 x 90mm
Weight: 68 kg
Power supply: 230V / 50—60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ

Multisport scoreboard 452 MB 7020-2 Multisport scoreboard 452 MB 7020-2

Article:AVSR1015
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3200 x 2000 x 90mm
Weight: 105 kg
Power supply: 230—220V / 50—60Hz
Power consumed: 210 VA
Protection: Unbreakable matte polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 3 x 20 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 3.
