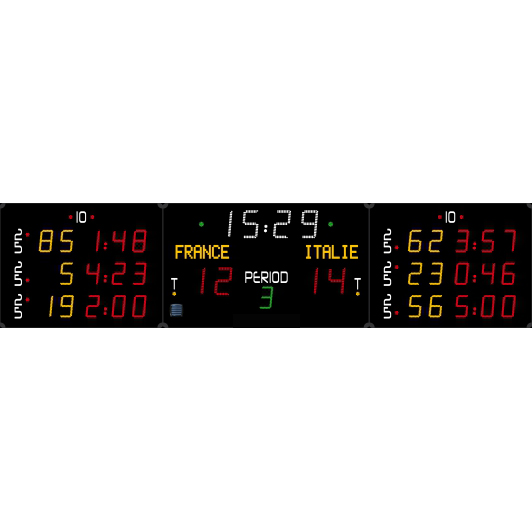

Ice hockey scoreboard 452 GB 9020-2

Ice hockey scoreboard 452 GB 9020-2 AVSR1053

Article: AVSR1053

Use: Indoor – tropicalized electronic parts for ice rink atmosphere

Transmission: Radio (868 MHz) or cable

Readability: 110m, angle >160°

Dimensions: 4900 x 1150 x 90mm

Weight: 90 kg

Power supply: 230V / 50-60Hz

Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)

Integrated Horn: 116dB at 1m

Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ



DISPLAY FUNCTIONS:
Score: 2 x 2 red LED digits (25 cm)
Team names: 20 yellow LED alphanumerical characters (12cm)
Moving messages (Ads/Sponsor): 1000 characters
Period: 1 green LED digit (20 cm)
Time stop indicator: 2 x 1 green LED dot
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Time out indicator: 2 x 1 yellow LED dot

Exclusions timers: 3 x 3 red LED digits (20cm) (for each module)
Display of 3 penalties per team:
2 running penalties + 1 wait-listed penalty.
Penalty indicators: 8 red LED dots for 2’, 5’ penalties and misconduct (10’)
(for each module)
Excluded player No: 3 x 2 yellow LED digits (20cm)(for each module)

Supported sports: ice hockey
Made in EU.

Add to request

Another sports equipment from category

Multisport scoreboard 452 MF 7020-2 Multisport scoreboard 452 MF 7020-2

Article:AVSR1006
Dimensions: 4400 x 2500 x 90 mm
Weight : 176 Kg
Digit height : 25 and 30 cm
Distance of readability : 160 m
Angle of readability : 160°
Display : LEDs (SMD)
FIBA approved

Multisport scoreboard 452 MF 7000 Multisport scoreboard 452 MF 7000

Article:AVSR1001
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 167 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1

Multisport scoreboard 452 MF 7100 Multisport scoreboard 452 MF 7100

Article:AVSR1002
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 2600 x 1800 x 90mm
Weight: 75 kg
Power supply: 230V / 50—60Hz
Power consumed: 229 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 2 integrated horns, total = 119dB at 1m
Mains cable (supplied): 1x25 m – Type: 230V, 3G, 0.75 mm²
FIBA approved for competitions level 1
