Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

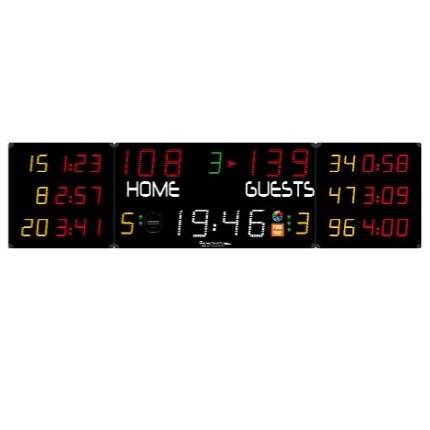

Multisport scoreboard 452 MB 3004 long

Article: AVSR1023

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 110m, angle >160°

Dimensions: 3900 x 1000 x 90mm

Weight: 65 kg

Power supply: 230V / 50-60Hz

Power consumed: 207 VA

Protection: Unbreakable matt polycarbonate front face (DIN 18032-3)

Horn: 1x integrated horn, 116dB at 1m

Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²

FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (25 cm)
Period: 1 green LED digit (20 cm)
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Team fouls (BB) /sets (VB, T, TT...): 2 yellow LED digits (20 cm)
Time out (BB, HB, VB)/ No. of exclusions (HB): 2 x 3 green LED points
Excluded player (HB) /set result for home team (VB, T, TT...): 6 x 2 yellow LED digits (16 cm)
Penalty timer (HB) / Time-out timer (BB) / set result for guest team (VB, T, TT...): 6 x 3 red LED digits (16 cm) + blinking points

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Waterpolo scoreboard 452 XPB 3020 Waterpolo scoreboard 452 XPB 3020

Article:AVSR1061
Dimensions: 3000 x 1000 x 90 mm
Weight: 54 Kg
Digit height: 20 and 16 cm
Distance of readability: 90 m
Angle of readability: 160°
Display: LEDs (SMD)
Horn (116dB at 1m)
Power supply/consumed: 230V/50—60Hz / 142VA
Team indication and Player numbers: white and blue stickers

Multisport scoreboard 452 MS 7020 Multisport scoreboard 452 MS 7020

Article:AVSR1035
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1000 x 90mm
Weight: 44 kg
Power supply: 230V / 50—60Hz
Power consumed: 113VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Team names: non Editable

Scoreboard for multisport Pro range 452 MB 3123 FIBA Scoreboard for multisport Pro range 452 MB 3123 FIBA

Article: AVSR1033
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3100 x 1600 x 90mm
Weight: 80 kg
Power supply: 230V / 50—60Hz
Power consumed: 269 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 1x internal horn, 116dB at 1m
