Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

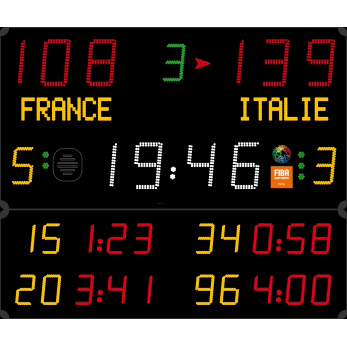

Multisport scoreboard 452 MB 3103

Article: AVSR1020

Use: Indoor

Transmission: Radio (868 MHz) or cable

Readability: 110m, angle >160°

Dimensions: 1900 x 1600 x 90mm

Weight: 49 kg

Power supply: 230V / 50-60Hz

Power consumed: 230 VA

Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)

Horn: 1x integrated horn, 116dB at 1m

Mains cable (supplied): 25 m – Type: 230V, 3G, 0.75 mm²

FIBA approved for competitions level 3.



DISPLAY FUNCTIONS:
Score: 2 x 3 red LED digits (25 cm)
Period: 1 green LED digit (20 cm)
Team names: 20 yellow LED alphanumerical characters (12 cm)
Moving messages (Ads/Sponsor): 1000 characters
Ball possession: 2 red LED arrows
Timer/Rest period: 4 white LED digits (25 cm) + blinking points
Team fouls (BB) or sets (VB, T, TT...): 2 x 1 yellow LED digits (20 cm)
Time out (BB, HB, VB) or No. of exclusions (HB): 2 x 3 green LED points
Excluded player (HB) or set result for home team (VB, T, TT...): 4 x 2 yellow LED digits (16 cm)
Penalty timer (HB) or Time-out timer (BB) or set result for guest team (VB, T, TT...): 4 x 3 red LED digits (16 cm) + blinking points

Supported sports: basket ball – handball – volleyball – tennis –table tennis – badminton – futsal – rink hockey in line hockey– ice hockey - unihockey / floorball – netball – boxing – free mode.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MB 3023-2 Multisport scoreboard 452 MB 3023-2

Article: AVSR1034
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3200 x 2000 x 90mm
Weight: 103 kg
Power supply: 230V / 50—60Hz
Power consumed: 209 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Horn: 1x integrated horn, 116dB at 1m
Team names: HOME/GUESTS White stickers
Player number: 2 yellow LED digits (6 cm) per player (12)
3 lines of penalty time
FIBA approved

Multisport scoreboard 452 MB 3123-123 Multisport scoreboard 452 MB 3123-123

Article: AVSR1045
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 5300 x 2000 x 90mm
Weight: 170 kg
Power supply: 230V / 50—60Hz
Power consumed: 610 VA
Protection: Unbreakable matt polycarbonate front face (DIN 18032—3)
Horn: 1x internal horn, 116dB at 1m
Programmable team names or moving messages display for 1000 characters
Player number: 2 yellow LED digits (9 cm) per player (12)
Player points — 2 red LED digits (9 cm) per player
Player names (2 modules): 10 yellow LED alphanumerical characters (9 cm) per player (12)
3 lines of penalty time

Multisport scoreboard 452 MD 7020-2 Multisport scoreboard 452 MD 7020-2

Article:AVSR1042
Dimensions: 2700 x 1300 x 90 mm
Weight: 54 Kg
Digit height: 20 and 16 cm
Distance of readability: 90 m
Angle of readability: 160°
Display: LEDs (SMD)
Team names: non Editable
Player number: 2 yellow LED digits (6 cm) per player (12)
FIBA approved
