Handball Goals

Art. AVMS20048

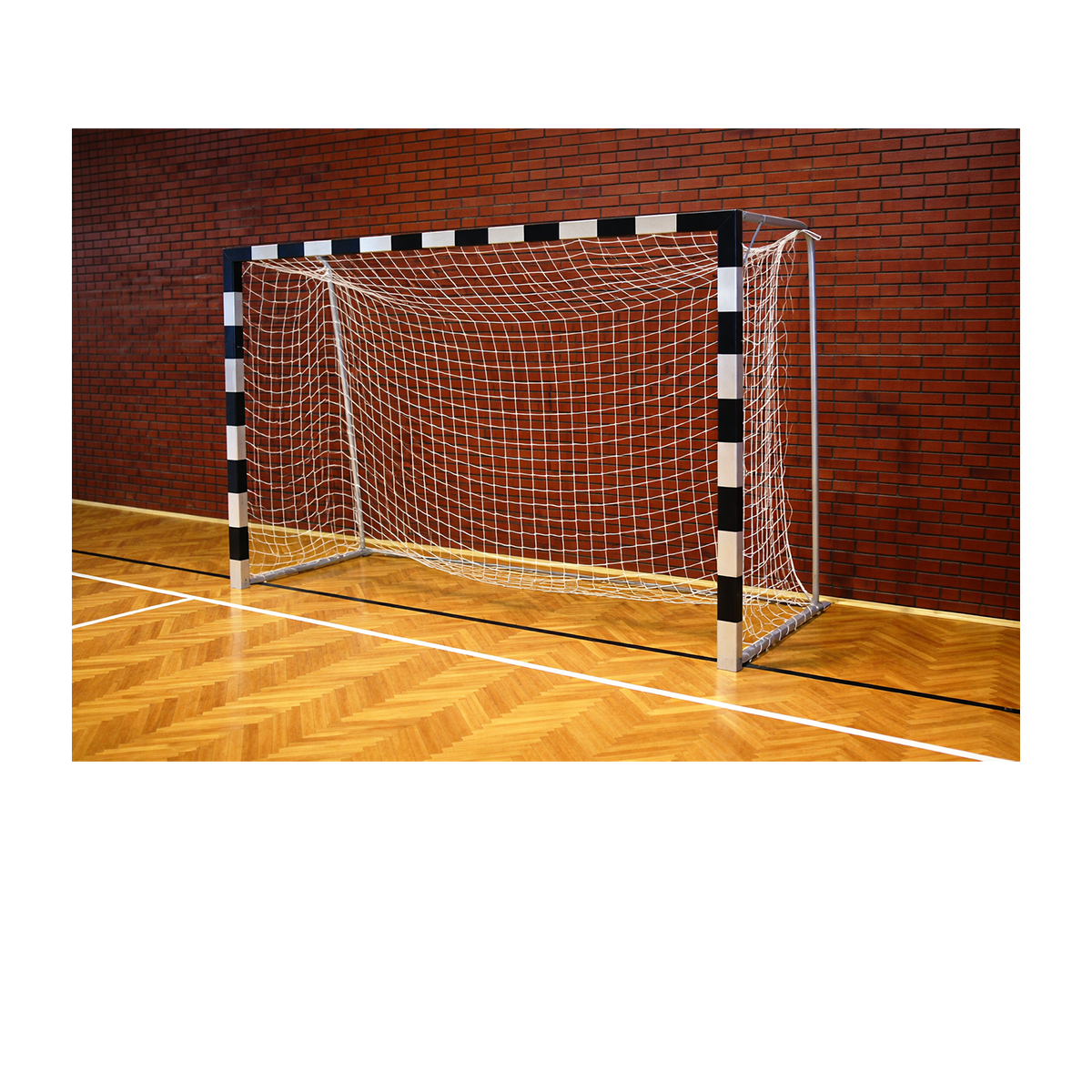

Stationary handball goals with embedded ground sleeves made of hot-rolled galvanized rectangular hollow profile 90 × 90 × 4 mm, with internal dimensions of 3 × 2 m. The frame is painted white, and the black markings are applied with impact-resistant paint.

Description:

The handball goals are designed for stationary installation using ground sleeves.

The load-bearing elements of the ground sleeves are made of hot-rolled galvanized rectangular hollow profile 90 × 90 × 4 mm.

The internal size of the goals is 3 × 2 m.

The main frame coating is white, and the black markings are applied with impact-resistant paint.

The side reinforcement is made of steel pipe 1" × 2 mm and is equipped with two drilled flat steel mounting plates on each side.

A total of 4 mounting plates are provided per goal set.

Fastening is carried out using M8 × 20 metric bolts and M8 square nuts installed in the inner groove of the aluminum profile.

The rear reinforcement is made of steel pipe ¾" × 2 mm and is secured with self-tapping screws during assembly.

Advantages:

● Stationary design with embedded ground sleeves.

● Embedded ground sleeves made of hot-rolled galvanized profile 90 × 90 × 4 mm.

● Internal goal size: 3 × 2 m.

● Base frame coating: white paint.

● Marking: black, applied with impact-resistant paint.

● Side reinforcement: steel pipe 1" × 2 mm.

● Rear reinforcement: steel pipe ¾" × 2 mm.

● Supplied disassembled.

Package contents:

● Handball goal frame.

● Ground sleeve elements.

● Side reinforcement elements.

● Rear reinforcement elements.

● Fastening kit for assembly.

Materials:

● Main structure — steel.

● Embedded ground sleeves — hot-rolled galvanized steel, rectangular hollow profile 90 × 90 × 4 mm.

● Side reinforcement — steel pipe 1" × 2 mm.

● Rear reinforcement — steel pipe ¾" × 2 mm.

● Surface coating — white paint, black impact-resistant marking.

● Fasteners — M8 × 20 metric bolts, M8 square nuts, self-tapping screws.

Dimensions:

● Internal goal size — 3 × 2 m.

● Ground sleeve section — 90 × 90 × 4 mm.

● Side reinforcement pipe — 1" × 2 mm.

● Rear reinforcement pipe — ¾" × 2 mm.

● Delivery — disassembled.

Technical specifications:

● Installation type — into embedded ground sleeves.

● Corrosion protection — hot-dip galvanization of the ground sleeve elements.

● Surface marking — impact-resistant paint.

● Certification — own certificate.

● Application — sports facilities and handball playing areas.

Manufactured in:

● EU
