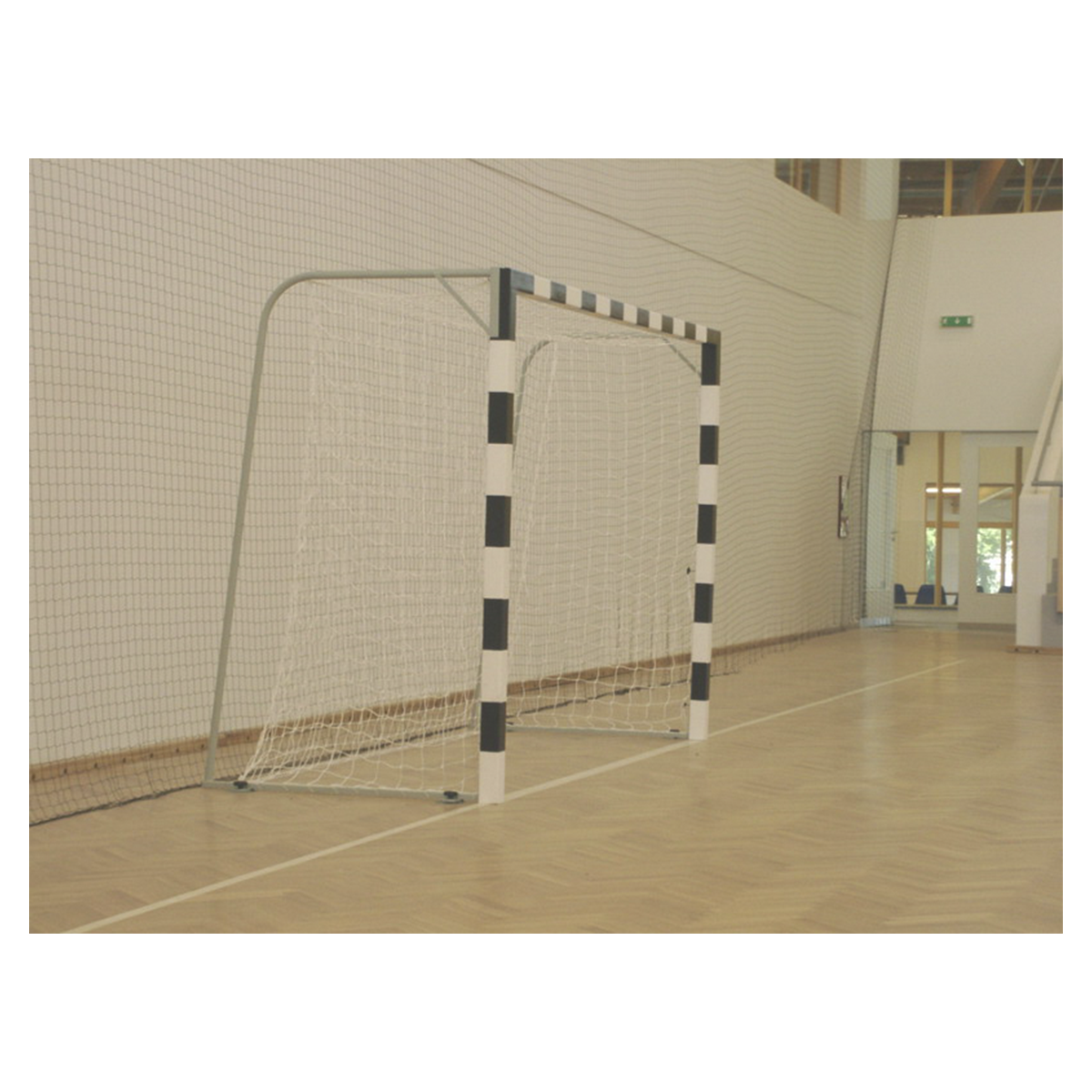

Handball Goal

Art. AVMS13003

The handball goal is made of a rounded special aluminum profile 80 × 80 × 3 mm, with internal dimensions of 3 × 2 m and a detachable portable design.

Description:

The handball goal is intended for use in educational institutions and sports clubs.

The product is made of a rounded special aluminum profile 80 × 80 × 3 mm.

The construction is manufactured in accordance with IHF requirements.

The internal dimensions of the goal are 3 × 2 m.

The main surface is painted white.

Black stripes are applied with impact-resistant paint, which increases the surface resistance to impacts.

The side reinforcement is made of 1" × 2 mm steel tube and is equipped with two drilled flat steel mounting plates on each side.

The flat ends of the side reinforcement fit into the outer groove of the special aluminum profile.

Fixation is carried out with M8 × 20 bolts and M8 square nuts installed in the inner groove of the aluminum profile.

The rear reinforcement is made of ¾" × 2 mm steel tube and is fixed with self-tapping screws.

The construction can be transported in disassembled form.

Advantages:

● Special aluminum profile 80 × 80 × 3 mm.

● Complies with IHF requirements.

● Internal dimensions 3 × 2 m.

● White base coating.

● Black stripes with impact-resistant paint.

● Side reinforcement made of 1" × 2 mm steel tube.

● Rear reinforcement made of ¾" × 2 mm steel tube.

● Detachable design for transport.

● Suitable for educational institutions.

● Suitable for sports clubs.

Delivery set:

● Handball goal.

● Side reinforcement.

● Rear reinforcement.

● Fastening elements.

Materials:

● Main construction — special aluminum profile 80 × 80 × 3 mm.

● Side reinforcement — 1" × 2 mm steel tube.

● Rear reinforcement — ¾" × 2 mm steel tube.

● Fastening — M8 × 20 bolts and M8 square nuts.

● Finish — white coating and black impact-resistant marking.

Dimensions:

● Internal dimensions — 3 × 2 m.

● Profile — 80 × 80 × 3 mm.

● Side reinforcement — 1" × 2 mm.

● Rear reinforcement — ¾" × 2 mm.

Technical specifications:

● Type — handball goal.

● Construction — portable, detachable.

● Standard — IHF.

● Installation — portable.

Manufactured in:

● EU
