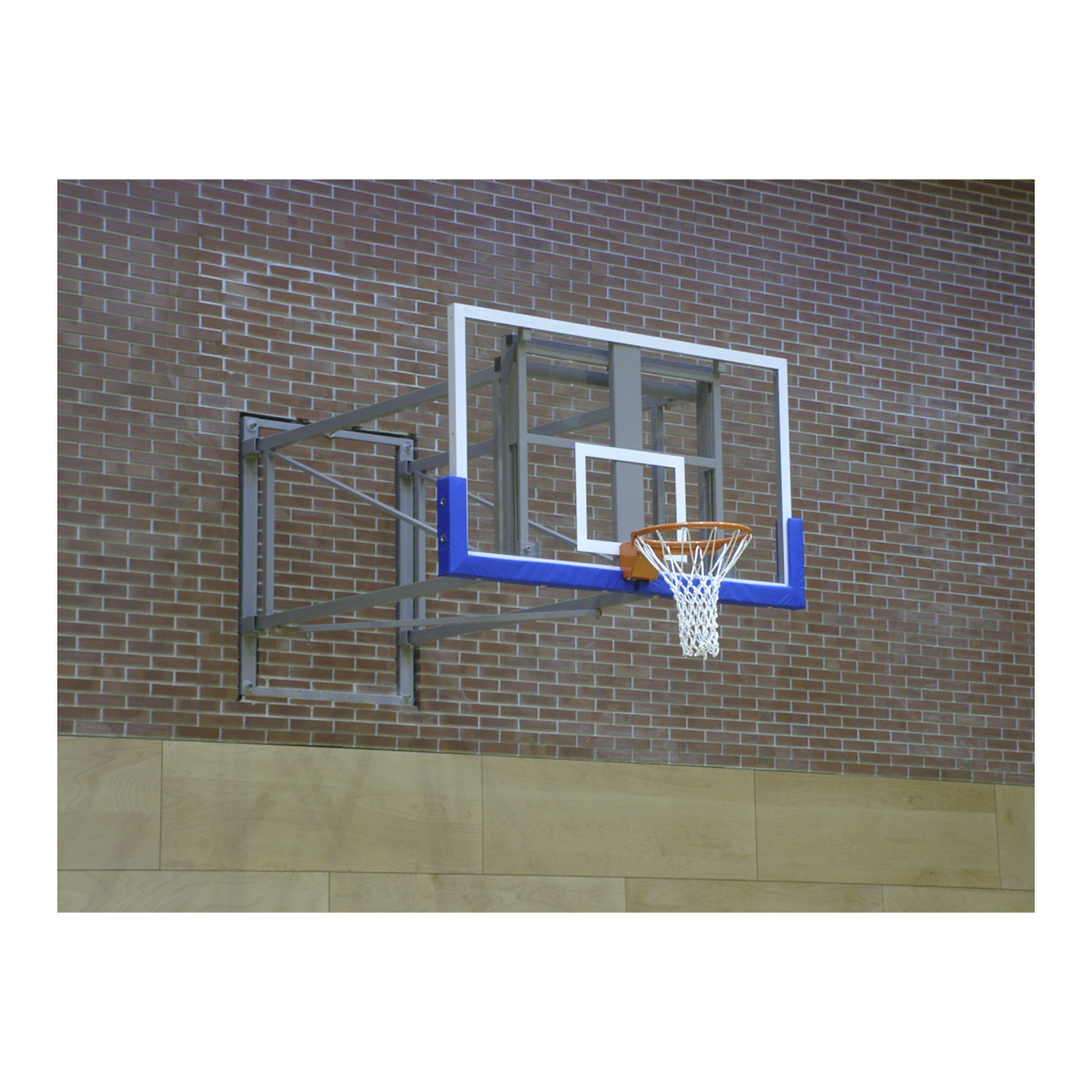

Basketball unit to be mounted on the wall

Art. AVMS15019

The support frame is made of 40 × 40 mm rectangular steel profiles with powder coating, reinforced with 40 × 30 mm braces, and consists of 4 parts. The frame is wall-mounted, with a projection of 2.25 m.

Description:

The basketball support frame is designed for wall mounting and use in educational institutions and sports clubs.

The product is made of rectangular steel profiles 40 × 40 mm with powder coating.

The structure is reinforced with braces made of 40 × 30 mm rectangular profile.

The frame consists of 4 parts: a wall mounting frame, 2 projecting frames, and a front frame for backboard attachment.

The 2 projecting frames are connected to the wall frame through hinge joints.

Side folding is provided by a telescopic rectangular profile installed between the lower left corner of the front frame and the lower right corner of the rear frame.

The position of the telescopic profile is locked and released using a spring pin with an eyelet and a release frame with a hook-shaped end.

The projection can be up to 2.25 m and is selected depending on the conditions of the specific installation.

Advantages:

● Steel construction made of 40 × 40 mm profiles.

● Reinforcement with 40 × 30 mm braces.

● Powder coating of metal elements.

● 4-section construction.

● Hinged connection of the projecting frames.

● Side folding with a telescopic profile.

● Locking with a spring pin.

● Projection up to 2.25 m.

● Suitable for educational institutions.
