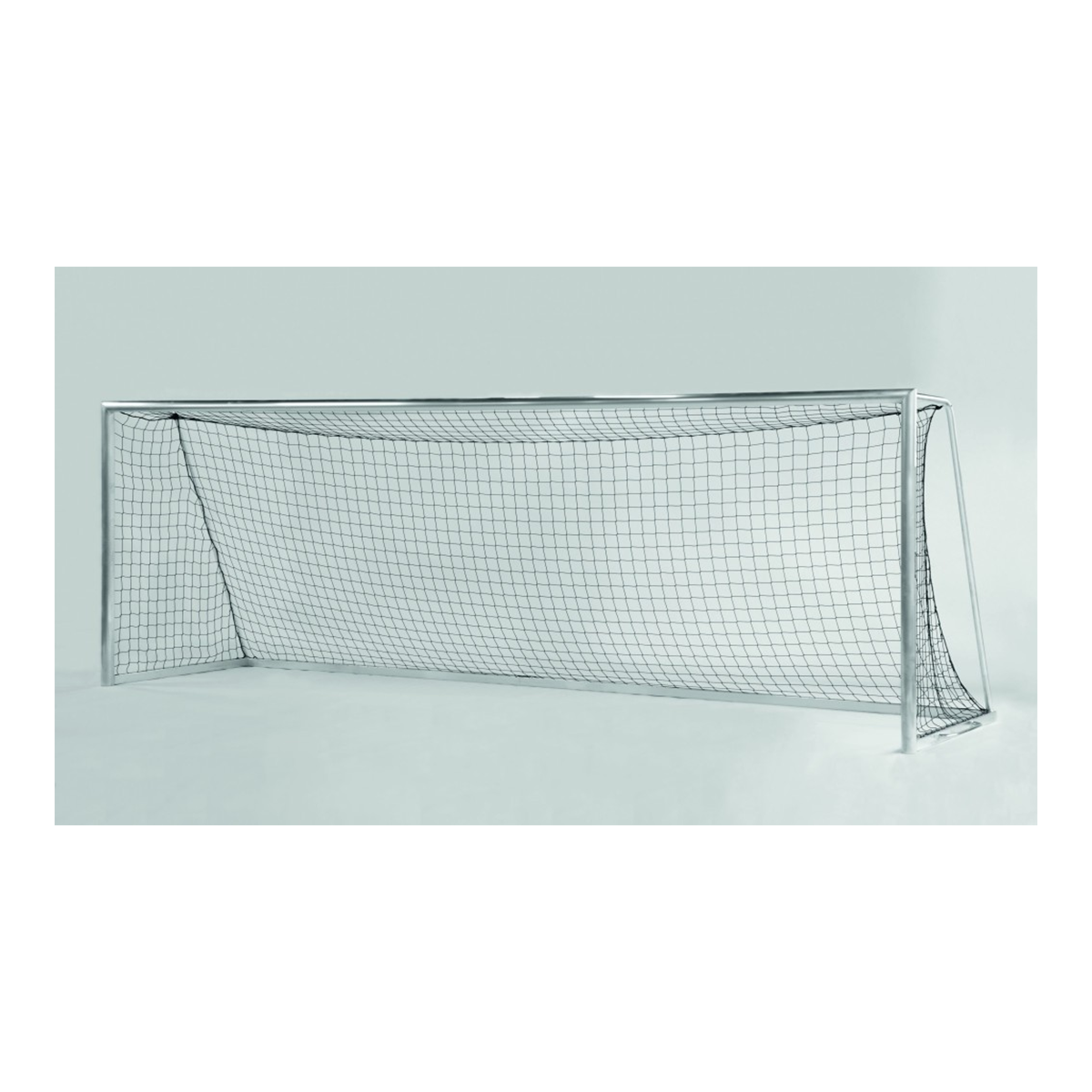

Portable Football Goals

Art. AVMS15012

Football goals with an oval profile system 120 × 100 mm, portable construction, and internal dimensions of 5 × 2 m, made of aluminum without powder coating.

Description:

The portable football goals are designed for use in educational institutions and sports clubs.

The goal frame is made of a special oval aluminum profile with overall dimensions of 120 × 100 mm.

The internal dimensions of the goals are 5 × 2 m.

The frame surface has a natural aluminum finish without powder coating.

The side section includes reinforcement made of steel pipe 1" × 2 mm with two drilled flat steel mounting plates on each element.

The flat ends of the side reinforcement fit into the outer groove of the special oval aluminum profile.

Fastening is carried out using M8 × 20 bolts and M8 square nuts installed in the inner groove of the aluminum profile.

The rear reinforcement is made of steel pipe ¾" × 2 mm.

During assembly, the rear connector is slid onto the curved extension of the side reinforcement and fixed with self-tapping screws.

The structure can be transported in a disassembled state.

Advantages:

● Oval aluminum profile 120 × 100 mm.

● Internal dimensions 5 × 2 m.

● Natural aluminum surface without powder coating.

● Side reinforcement made of steel pipe 1" × 2 mm.

● Rear reinforcement made of steel pipe ¾" × 2 mm.

● Fastening with M8 × 20 bolts and M8 square nuts.

● Demountable structure for transportation.

● Suitable for educational institutions.

● Suitable for sports clubs.

Package contents:

● Goal frame.

● Side reinforcements.

● Rear reinforcement.

● Fastening elements.

Materials:

● Main structure — aluminum oval profile 120 × 100 mm.

● Side reinforcement — steel pipe 1" × 2 mm.

● Rear reinforcement — steel pipe ¾" × 2 mm.

● Fasteners — M8 × 20 bolts and M8 square nuts.

● Finish — natural aluminum, without powder coating.

Dimensions:

● Internal dimensions — 5 × 2 m.

● Frame profile — 120 × 100 mm.

● Side reinforcement — 1" × 2 mm.

● Rear reinforcement — ¾" × 2 mm.

Technical specifications:

● Type — portable indoor football goals.

● Installation — portable.

● Construction — demountable.

Manufactured in:

● EU
