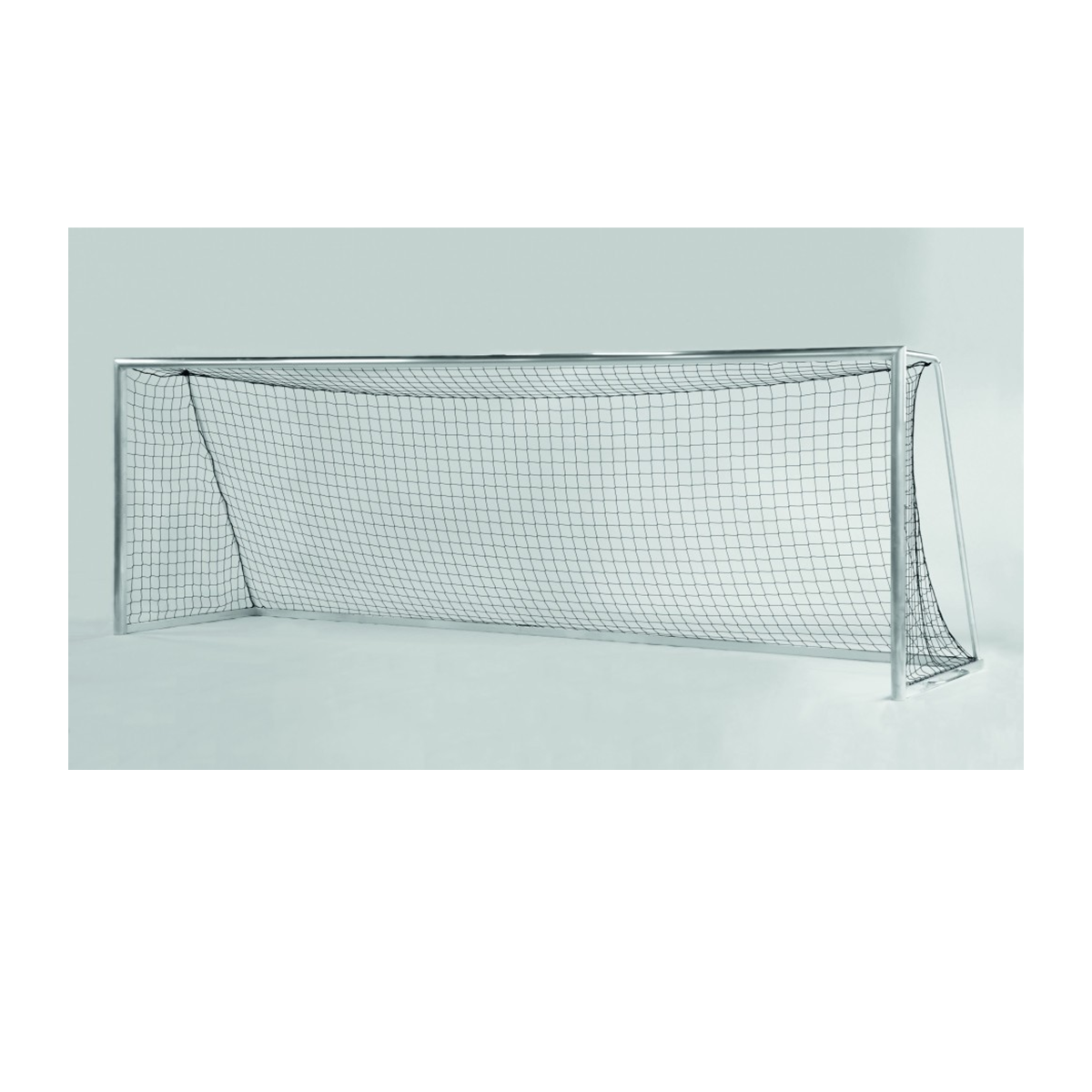

Portable football goal 5x2 m, aluminium, indoor

Art. AVMS13008

Football goal with an oval profile system 120 × 100 mm, portable construction, and internal dimensions of 5 × 2 m, made of aluminum without powder coating.

Description:

The portable football goal is designed for use in educational institutions and sports clubs.

The goal frame is made of a special oval aluminum profile with overall dimensions of 120 × 100 mm.

The internal dimensions of the goal are 5 × 2 m.

The frame surface is finished in natural aluminum without powder coating.

The side section includes reinforcement made of steel pipe 1" × 2 mm with two drilled flat steel mounting plates on each element.

The flat ends of the side reinforcement fit into the outer groove of a special oval aluminum profile.

Fastening is carried out using M8 × 20 bolts and M8 square nuts installed in the inner groove of the aluminum profile.

The rear reinforcement is made of steel pipe ¾" × 2 mm.

During assembly, the rear connector is slid onto the curved extension of the side reinforcement and fixed with self-tapping screws.

The structure can be transported in a disassembled state.

Advantages:

● Oval aluminum profile 120 × 100 mm.

● Internal dimensions 5 × 2 m.

● Natural aluminum surface without powder coating.

● Side reinforcement made of steel pipe 1" × 2 mm.

● Rear reinforcement made of steel pipe ¾" × 2 mm.

● Fastening with M8 × 20 bolts and M8 square nuts.

● Demountable structure for transportation.

● Suitable for educational institutions.

● Suitable for sports clubs.

Package contents:

● Goal frame.

● Side reinforcements.

● Rear reinforcement.

● Fastening elements.

Materials:

● Main structure — aluminum oval profile 120 × 100 mm.

● Side reinforcement — steel pipe 1" × 2 mm.

● Rear reinforcement — steel pipe ¾" × 2 mm.

● Fasteners — M8 × 20 bolts and M8 square nuts.

● Finish — natural aluminum, without powder coating.

Dimensions:

● Internal dimensions — 5 × 2 m.

● Frame profile — 120 × 100 mm.

● Side reinforcement — 1" × 2 mm.

● Rear reinforcement — ¾" × 2 mm.

Technical specifications:

● Type — portable indoor football goal.

● Installation — portable.

● Construction — demountable.

● Standard — according to sports regulations.

Manufactured in:

● EU
