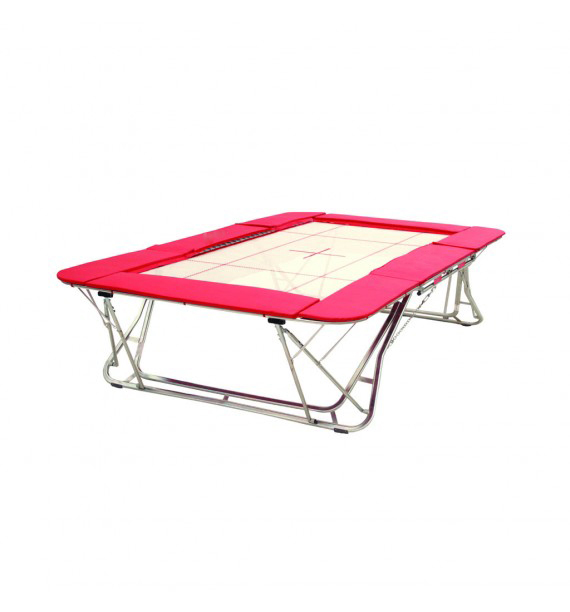

Large competition trampoline - 5x4 mm bed - FIG approved

Large competition trampoline - 5x4 mm bed - FIG approved AVGY1196

Article: AVGY1196

Material: steel frame, PVC cover, JERSEY cover, foam

Color: Beige/red

Dimensions:

Unfolded: 520 x 305 x 115 cm (LxWxH).

Folded: 345 x 83 x 220 cm (LxWxH).

Weight: 245 kg.

Compliance with: FIG

Sold without end decks and safety mats.
- 5 x 4 mm bed.
- Reinforced "electro galvanized" steel frame, section profile "egg shaped" (65 x 36 mm).
- 428 x 214 cm bed attached to the frame with 110 tempered steel cylindrical springs + 8 reinforced corner springs.
- Spring padding included, 3 cm thick.
- Pair of movable lifting roller stands.
- Micrometric adjustment of bed flatness with metal tensioners.

Add to your inquiry to the project manager

Another sports equipment from category

Side protection for trampoline Side protection for trampoline

Article:AVSS1454
For trampoline AVSS1449, rubber foam covered with Btex, with buttonhole application. Made in EU.

Trampoline "Grand Master Exclusive 6x4" Trampoline "Grand Master Exclusive 6x4"

Article: AVSP1001
Made in EU.
With high—precision made trampoline bed made from 6x4—mm—wide nylon strands. With reinforced corner springs for increased stability
Versions
With 1 pair of rolling stands
With 1 pair of rolling stands with lift
With 1 pair of "Safe & Comfort" rolling stands with lift
Dimensions and weight
Frame outer dimensions (LxW) 520x305 cm.
Weight: 250 kg.
Dimensions when stored
On rolling stands with lift (LxWxH) 334x80x220 cm or 197 cm when lowered.
On rolling stands (LxWxH) 321x80x220 cm

Trampoline "Ultimate 4x4" Trampoline "Ultimate 4x4"

Article: AVSP1002
Compliance whith: FIG
Made in EU.
The trampoline "Ultimate 4x4" has an extremely stable base construction. Using the "Easy Lock" system, the competition trampoline can be quickly set up by just one person. Special ultimate springs ensure optimal dynamics and durability.
Versions
With 1 pair of rolling stand
With 1 pair of rolling stands with lift
With 1 pair of "Safe & Comfort" rolling stand with lift
Available with 3 different options for all—round frame padding
32—mm frame padding, foldable
50—mm frame padding, foldable
50—mm frame padding, will not fold
Dimensions and weight
[Frame outer dimensions (LxWxH):] 520x305x115 cm
Weight: 260 kg
Dimensions when stored
[On rolling stand with lift (LxWxH):] Approx. 334x80x220 cm or 197 cm when lowered
[On rolling stand (LxWxH):] Approx. 321x80x220 cm
