World athletics aluminum hammer cage with galvanized steel doors and ground sleeves

Article: AVDM1098

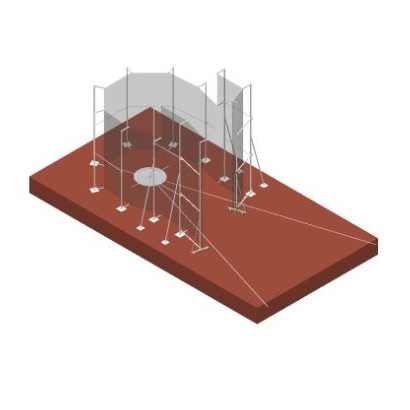

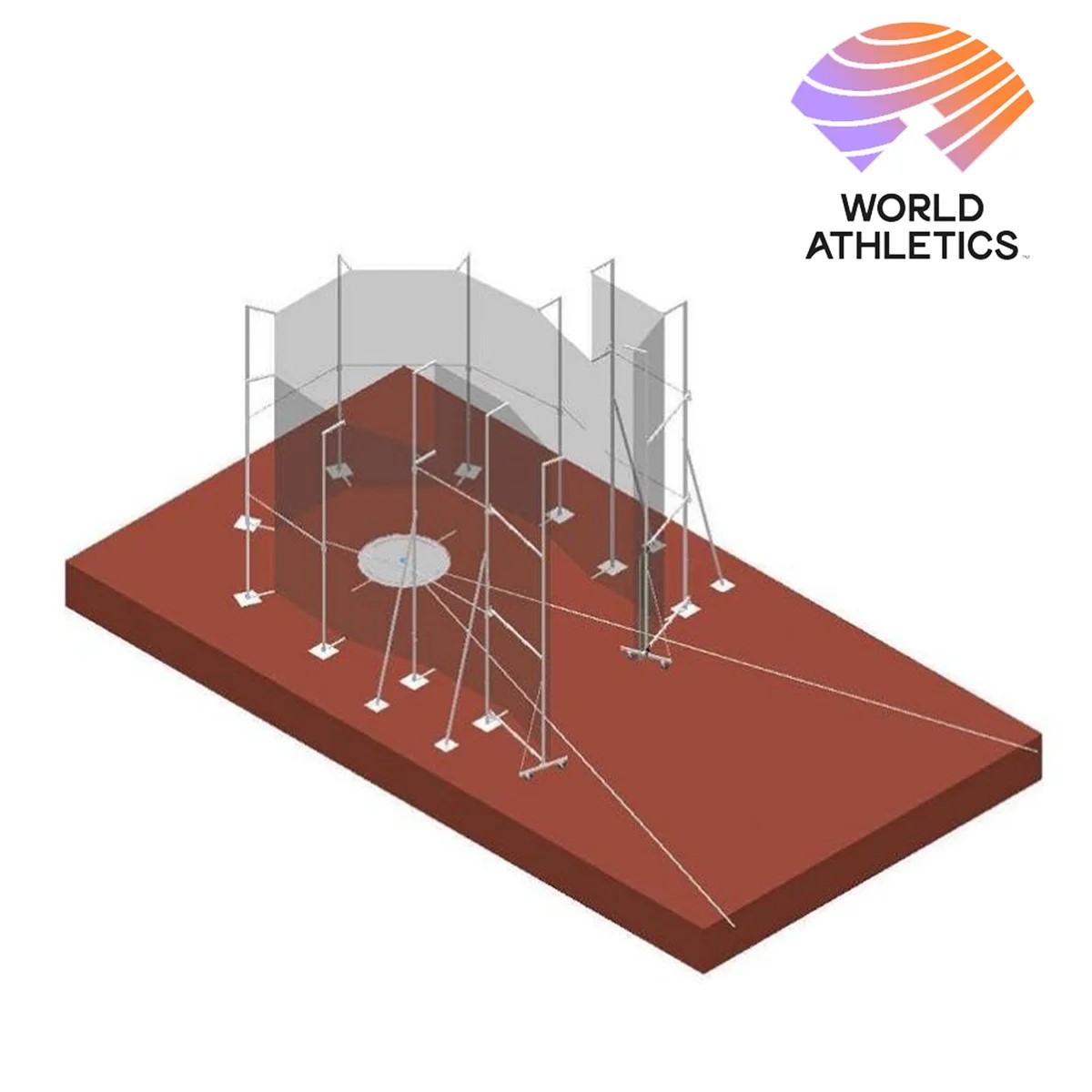

Aluminium hammer throw cage with rear aluminium uprights and front galvanised steel doors with ground sleeves, World Athletics certified.

Description:

The hammer throw cage with rear uprights made of high-strength anodised oval aluminium and front doors made of galvanised steel is characterised by durability and safety.

Each aluminium upright is reinforced with an internal sleeve up to a height of 2,40 m to prevent break points.

The nets made of moisture-resistant polypropylene cord Ø5 mm with a 40 × 40 mm mesh size, certified according to EN-1263-1, are installed using a “floating” method to eliminate the risk of ricochet towards the athlete in accordance with World Athletics rules. The net is raised and lowered using nylon rollers. Supplied with ground sleeves and nets.

Advantages:

● Rear aluminium uprights and front galvanised doors for optimum strength

● Reinforced uprights and frame prevent breakage

● “Floating” nets, certified according to EN-1263-1

● Easy raising and lowering of the net

● Compliance with World Athletics requirements

Included Components:

● Anodised aluminium uprights (oval profile) — 6 pcs., height 7,20 m

● Anodised aluminium uprights (oval profile) — 4 pcs., height 10,20 m, with reinforced support legs

● Galvanised steel protective panels/doors — 2 pcs., height 10 m, on stable bases with 2 rubber wheels Ø260 mm each

● Adjustable galvanised steel crossbars — 11 pcs.

Technical Specifications:

● Type — hammer throw cage

● Construction — combined (aluminium / galvanised steel)

● Installation — permanent, with ground sleeves

● Net installation — “floating”

● Certification — World Athletics

Materials:

● Rear uprights — anodised aluminium, oval profile

● Front uprights and doors — galvanised steel

● Nets — polypropylene Ø5 mm, EN-1263-1

● Door wheels — rubber Ø260 mm

Dimensions:

● Ground sleeves height: 700 mm and 1000 mm

● Main net: 24500 × 7300 mm

● Braided ropes: 15000 mm 20000 mm

● Upright height: 7200 mm and 10200 mm

● Upright height — 7,20 m and 10,20 m

Production:

● EU

Sport: Athletics

Category: Sports equipment

Subcategory: Throwing sectors (hammer)

Discipline: Hammer throw
