PANDASTATION pool lift

Article: AVDG1009

Capacity: 350 kg

Maximum arm travel: 912 mm

Time of down-lifting with weight: 20 sec

Time of up-lifting with weight: 20 sec

Battery: 24 V

Electrohydraulic box

2 speeds motorised movements

Control bar for forward motion and seat

Starter key

Emergency stop button

Autonomy: 50 working cycles

Front footboard

Steel structure: zinc coated and powder finished

Internal battery charger with LED indicator

Emergency manual pump for use in case of power failure

Anti-crushing system for backward movement

Automatic braking system integrated in the motorised rear wheel

Battery charge level indicator

Protective cover

AVK GmbH is an exclusive distribution partner of DiGi Project in Austria.

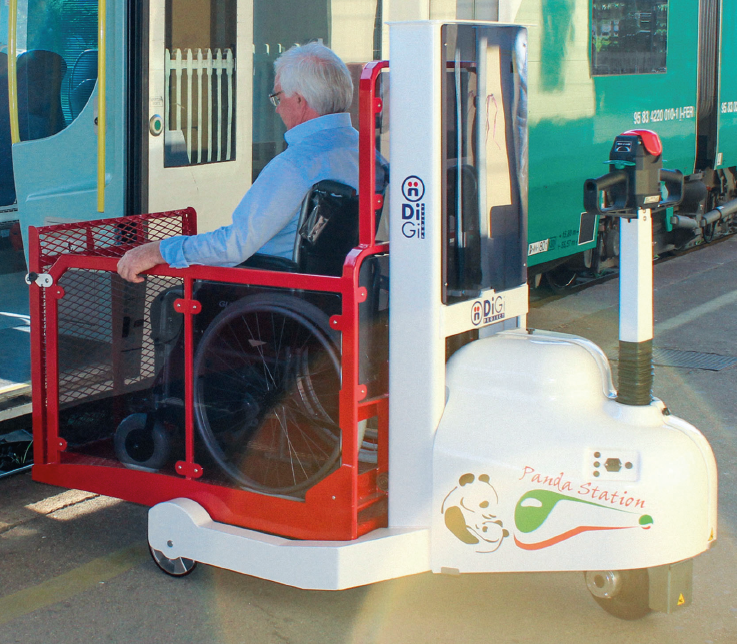

PANDASTATION has been designed to eliminate architectural barriers in railway stations and allow people with reduced mobility to get on and off the train in complete safety. It is an ergonomic product and easy to use for both the operator and the user thanks to the following safety devices: • automatic brake on wheel motor; • automated control bar so that the operator never has to move away from the PANDASTATION; • automatic up and down stop sensors; • battery level indicator and emergency button; • manual operation of the platform in case of emergency. PANDASTATION is powerful thanks to its hydraulic motor that can lift up to 350 kg. It has an autonomy of 100 working cycles thanks to its electric motor. The high working excursion, 1000 mm, makes it usable on almost all existing trains, so it is the ideal product for any type of station. Thanks to its attractive design, completely made in Italy, it represents the added value of every station: PANDASTATION is really the best result of design and safety in the field of train lifts.
