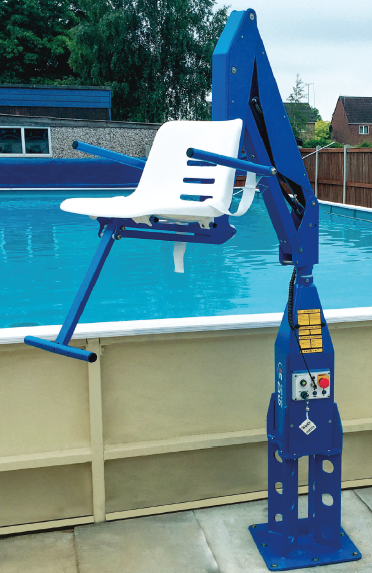

F100 F100M pool lift
Article: AVDG1005
Starter key & emergency stop button
Electrohydraulic box
Emergency manual pump for use in case of power failure
Spiral cable handset
250° motorized rotation
Retractable leg support
Adjustable armrests
External battery charger
Average autonomy: 50 working cycles
2-point safety belt
Galvanizing and 180°C powder coating treatment
Stainless steel frame for in-water parts
AVK GmbH is an exclusive distribution partner of DiGi Project in Austria.
The F100 and F100M fixed pool lifts are configured as a solid and rotating structure, easily customizable accor¬ding to the needs of the end customer. Specifically, the F100M lift is fully motorized and allows the user to be completely independent. On the other hand, F100 is not fully motorized: the user can get into and out of the water by himself with the help of a remote control, but the rotation of the arm on the pool must be carried out by an assistant. This model is mainly used in rehabilitation centers where the user is rarely left alone. In addition to rehabilitation centers, the models F100M and F100 are suitable for above-ground pools made of masonry, PVC and wood. The anchorage must always be on reinforced concrete by means of eight dowels or concrete plinth with dimensions 60 x 60 x 60 cm.
Another sports equipment from category
PANDASTATION pool lift
Article:AVDG1009
Capacity: 350 kg
Maximum arm travel: 912 mm
Time of down—lifting with weight: 20 sec
Time of up—lifting with weight: 20 sec
Battery: 24 V
Electrohydraulic box
2 speeds motorised movements
Control bar for forward motion and seat
Starter key
Emergency stop button
Autonomy: 50 working cycles
Front footboard
Steel structure: zinc coated and powder finished
Internal battery charger with LED indicator
Emergency manual pump for use in case of power failure
Anti—crushing system for backward movement
Automatic braking system integrated in the motorised rear wheel
Battery charge level indicator
Protective cover
BLUONE portable pool lift
Article:AVDG1002
Starter key & emergency stop button
Handbrake: up&down controls will not operate unless the handbrake is set
Electrohydraulic box
Emergency manual pump for use in case of power failure
Front rubber safety stoppers
Additional anti—rollover feet working during the lowering
Pivoting rear wheels
Retractable leg support
Adjustable armrests
External battery charger
Emergency stop button
Average autonomy: 50 working cycles
2—point safety belt
Stainless steel frame for in—water parts
Galvanization and powder coating
BLUBEACH amphibious chair
Article:AVDG1001
Made in: EU.
Total length with folded rudder: 220 cm
Total width: 107 cm
Seat width: 50 cm
Seat height: 45 cm
Backrest height: 90 cm
Weight: 31 kg
Maximum weight of the user: 130 kg
Minimum weight of the user: 25 kg
Wheels of the same diameter: 3
Wheel weight: 3 kg
Wheel pressure: 300 g (0,20 PSI)
