Swimming pools

Supply and installation of sports and technological equipment, timing and refereeing systems, scoreboards, video screens

Official representative 'Swiss Timing' 'Seicom' 'Malmsten' 'Sportsystem'

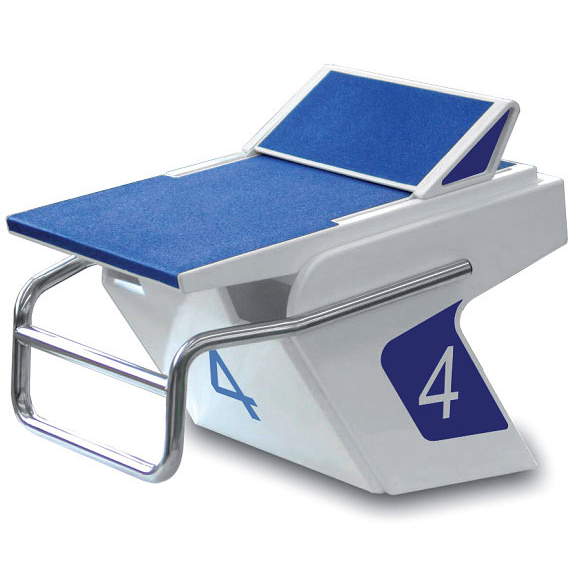

Swimming starting block OSB11

Article: 3454.700.TS.BL

Manufacturer: Swiss Timing (Switzerland)

Category: part of swimming timing and scoring system


Adjustable footrest, Ant-slip surface, Available versions: standard or with RBD (Relay Break Detecton) Swimming starting block

■ Dimensions:

Overall size: 780 x 640 mm

Platform size length x width: 740 x 520 mm

Height: max. 650 mm

■ Material: fiberglass

■ Weight: 45 kg

■ Top surface color on your choice (Black / Grey / Ivory / Red, Blue by default)

Sertifcates : FINA demand compliance

General Description:

OSB11 presents a powerful new patented feature, revolutionising the way the swimmers start from their blocks. Diving from the starting block with the body propelled by the knee at a 90° angle drastically increases the explosiveness of the start. Physical tests undertaken by top level swimmers showed faster races versus a standard block. The length of the platform is extended to 74 cm to accommodate the new styles of start.

The Swiss company "Swiss Timing" offers scoring and timing systems for the sports industry. The single features and complete sets for swimming timing and scoring system strongly depend on the configuration of the sports area in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.

Add to your inquiry to the project manager

Another sports equipment from category


Article: 3481.951
Manufacturer: Swiss Timing (Switzerland)
Model: OMEGA FLASH Start
Category: part of swimming timing and scoring system
Visual signal intended for hearing impaired athletes. Powered by the StartTime. Can be connected in chain up to 10 pcs. Optionally: tripod and ball head support.
Sertifcates: FINA Approved

OMEGA PICCOLO white - swimming scoreboard OMEGA PICCOLO white - swimming scoreboard

Manufacturer: Swiss Timing
Model: PICCOLO Scoreboard
Category: Part of Refereeing and timing systems for swimming and water polo
Dimensions : 1660 x 1150 x 90 mm
Housing : aluminium
Display: 8 /10 lines of 8 digits, 10 cm high digits, white LEDs
Visibility distance : 50 m
Horizontal viewing angle : 140°
Power supply : 115—230 VAC, 50—60 Hz
Power consumption : 100 VA (maximum) 30 VA (typical)
Data communication : RS422 (or 20 mA current loop internal
Operating temperature : 0 to 70°C
Storage temperature —30 to 85°C

Touchpad OCP5 Touchpad OCP5

Article: 2924.xxx
Manufacturer: Swiss Timing (Switzerland)
Category: part of swimming timing and scoring system
High sensitvity, Easy on—site maintenance, Non—slip, non—abrasive, non—corrosive and Low weight Swimming touchpad for reliable results: 5 type of sizes
■ Dimensions: 240х90 mm., 227x90 mm., 190x90 mm., 200x60 mm., 150x60 mm., — Depends on your needs and pool lane size.
■ Weight: 16,3/xx/12,8/10,2/7,3 kg
■ Pressure to get signal — sensitiveness 2—3 kg
Sertifcates: FINA demand compliance
