Timing unit Chronos

This equipment is no longer supplied. Please search through the catalog for analogues.

Article: timing-unit-chronos

Manufacturer: Swiss Timing

Model: Chronos

Category: Refereeing and timing systems

Specifications:

Dimensions : 430 x 250 x 120 mm

Weight : 3.6 kg

Serial link : 4 (1x RS232, 2x RS422, 1x RS485)

Power supply : 115-230 VAC, or 11-15 VDC

Power consumption : 65 VA (AC), or max. 4 A (DC)

Backup battery autonomy : minimum 30 minutes,

up to 2 hours without printer

Chrono inputs : 12 in total (with a precision of 100 ms)

Chrono outputs : 8 (4 Ready type, 4 Sync. Out type)

Speed measurements : 2 (4 input with a precision of 1 ms)

Display : 640 x 480 pixels, 65536 colours

Keyboard : 31 programmable keys

11 function keys

11 keys numeric keypad

Thermal printer : up to 48 characters per line

speed: ~25 mm/s

Operating temperature : 0 to +50°C

Storage temperature : -20 to +70°C

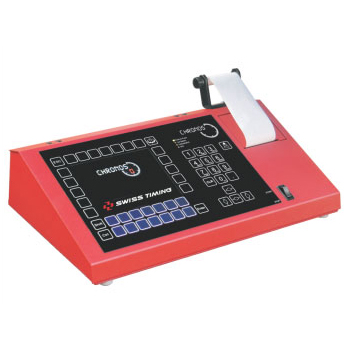

Chronos is an all-in-one timing unit for various sports
such as track cycling, ski and athletics.
Built around a dedicated hardware, it performs all the
time-critical functions. The data is processed by an
internal computer running under Windows CE®.
This high quality product has been developed using
advanced technology and is made of the highest quality
materials.
