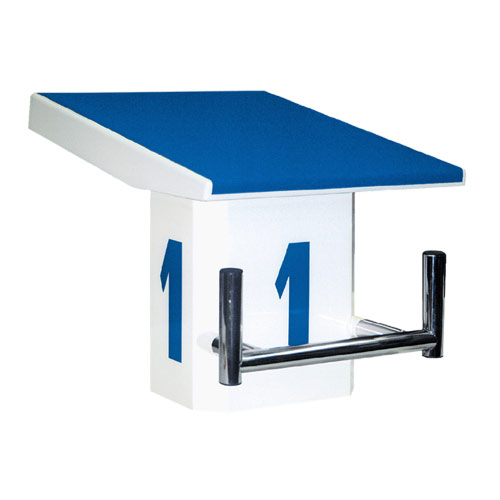

SWIMMING STARTING BLOCK OSB9

This equipment is no longer supplied. Please search through the catalog for analogues.

Article: swimming-starting-block-osb9

Manufacturer: Swiss Timing

Model: Sirocco

Category: Refereeing and timing systems for swimming

Specifications:

DIMENSIONS: Platform 600mm x 500mm

Base 218mm x 322mm

Height 403/495mm

TOTAL WEIGHT: 27,0 kg

COLOURS: Platform white RAL 9010 with non-skidding surface dark

blue RAL 5002

Base white RAL 9010

CONTACTS: Closing at the moment of the start (NO)

Max. 100mA / 12V

ACTION FORCE: 4,0 kg to 9,0 kg

CONNECTION: Cable with 2-pole plug (length ~50cm)

FIXATION: In accordance with mounting instructions

The OSB8-SW starting block has been designed in compliance with FINA-Regulations. It
consists of a plate fitted with an electro-mechanical contact system. This plate is to be
fixed on a base provided in the swimming pool concept.
The electro-mechanical contact closes during the swimmer’s take-off. The horizontal
pushing carried out by the swimmer represents the force exercised at the instant of his
start.
As a matter of fact, the OSB9-SW starting block permits to detect the swimmer’s presence
with the accuracy of an infinitely small fraction of a second, until the instant he leaves the
starting block.
The platform movement is enabled by 4 rubber shock absorbers (Silentblock) acting like a
spring fixation.
The platform movements are very small:
~1,5mm vertical by full charge (~100 kg)
~0,5mm horizontal (adjustment)
