Manual Scoreboard
Article: manual-scoreboard
Made in: Germany
Model: RU 56425
Category: Athletics equipment
Specifications:

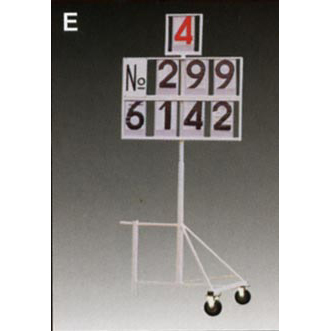

Revolving fibreglass scoreboard mounted on a robust wheelaway base.
Comes with 8 weatherproof cassette numbers (24cm high),
which can be adjusted from 0-9.
Another sports equipment from category
Article: 3481.931
Main unit dimensions: 376 x 215 x 245mm w/o Connectors
Microphone dimensions: 118 x 25 x 80 mm. + 7 meter cable
E—GUN dimensions 280 x 35 x 140 mm + 7 meter cable
Alarm “low battery”: Yes, 4 levels indicated as battery symbol (Empty, Low, Medium, Full)
Protection class: IP41
Power: Built in 12 Volt / 7 Ah Sealed lead—acid battery
Standby time: 24 Hours (1000 starts). After this, the unit should still be operable for 1 hour.
The self—discharge time is approximately 12 months if not in use.
An external 12V Lead/Acid battery (car battery) connected to the charger input, could be used if extended operation time is needed.
Charger: Max. initial current: 1.0 Ah (only for use in dry environment).
Speakers: Load 3.2 — 16 Ohms
Output speakers: @13.2 Volts, 3.2 Ohms, 1 kHz Typical: 2 * 13 Watt with < 10 % Distortion Maximum: 2 * 19 Watts with 10 % Distortion
Storage temperature: —20ºC to +65ºC
Working temperature: —10ºC to +65ºC
Relative humidity: (20%—80%) without condensation
Manufacturer Swiss Timing (Switzerland)
Article: 3436.900
Measurement duration: 5, 10 or 13 seconds, 1 to 30 seconds with RS422 serial remote control
Display: Amber LED, 250mm height
Display luminosity: 4 steps automatically adjusted with a light sensor
Display duration: 3 minutes after each measurement
Power: 115 / 230VAC 50/60 Hz, max. 0.5A
Internal battery autonomy: ~12 hours* at maximum luminosity, ~60 hours* at minimum luminosity
Wind speed range: —9.9m/s to +9.9m/s
Wind speed accuracy: ±0.1m/s
Operating temperature: 0 °C to +50 °C
Storage temperature: —25 °C to +70 °C
Moisture protection: IP54 (IP65 for the head)
Dimensions (closed): 850 x 760 x 200 mm
Dimensions (maximum open): 850 x 1390 x 415 mm
Weight with head: 21 kg
Manufacturer Swiss Timing (Switzerland)
Article: AVDM1015
Dimensions: 9.50 X 6.20 X 0.87 / 0.37 m
Colour: Red, blue
Level: F.F.A / I.A.A.F LEVEL 2
Compliance with: World Athletics certified.
